Key Features

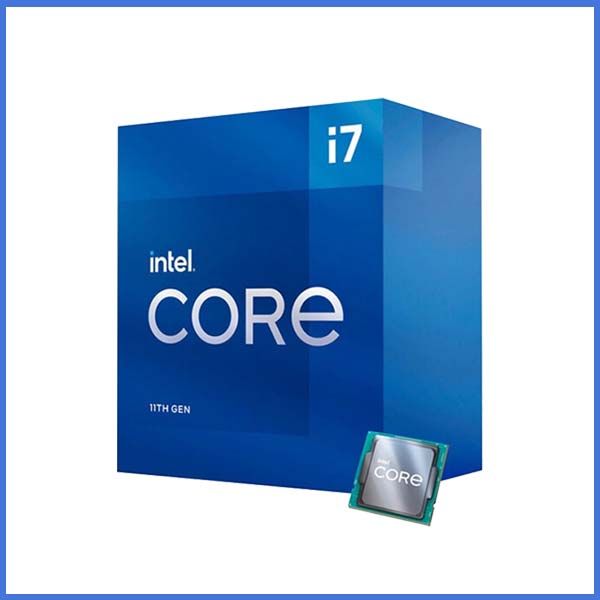

Model: Core i7-11700KF
Clockspeed: 3.60 GHz Up to 5.00 GHz
Cache: 16 MB, Socket: LGA 1200
CPU Cores: 8, CPU Threads: 16
Max RAM Size: 128GB
Basic Information | |
Base Frequency | 3.60 GHz |
Maximum Turbo Frequency | 5.00 GHz |
Cache | 16MB |
Cores | 8 |
Threads | 16 |
Default TDP | 95 W |
Memory Specifications | |
Maximum Size | 128 GB |
Maximum Speed | 3200MHz |
Type | DDR4 |
Max Number of Channels | 2 |
Warranty Information | |
Manufacturing Warranty | 3 Years (No Warranty for Fan or Cooler) |
This new 11th gen Rocket Lake microarchitecture is manufactured with the 14nm process that comes with 8cores and 16 threads. These Processors also support 64-bit computing on Intel architecture requires an Intel x86-64 (64 bit) architecture-enabled BIOS. As this chip is updated to the latest BIOS revision, it nicely fits into any Intel 400 and 500 series motherboards. Focusing on this, all the major motherboard manufacturers have already started BIOS updates for their 400 and 500 series lineup.
Intel 11th Generation Core i7-11700KF Processor having the base frequency of 3.60 GHz that can be reached as max turbo frequency at 5.00GHz. The processor has a compatibility socket of LGA 1200 that is supported by 400 and 500 series Intel motherboards. It has a SmartCache of 16 MB containing 8 cores and 16 threads. With a bus speed of 8 GT/s, it has thermal design power (TDP) rating of 95W. This latest microchip has few expansion options such as 4.0 PCI express revision having configured up to 1x16+1x4, 2x8+1x4, 1x8+3x4, and a maximum of 20 lanes. Considering the memory this processor has a dual-channel of max 128GB of the size that supports up to DDR4-3200 bus speed.
