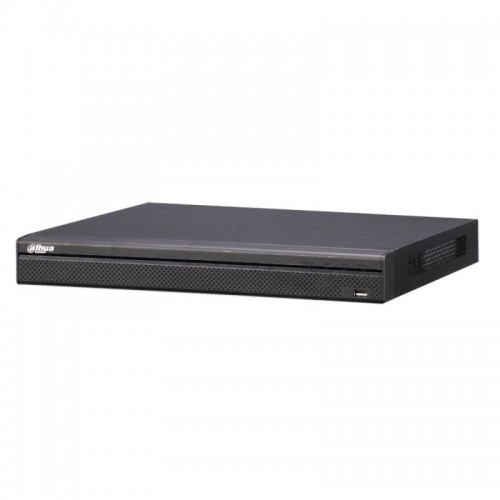

Dahua NVR4232-4KS2 32 Channel Network Video Recorder (NVR)

https://www.daffodil-bd.com/web/image/product.template/67572/image_1920?unique=77551db
(0 review)

Key Features
Model: NVR4232-4KS2
H.265/H.264/MJPEG/MPEG4 codec decoding
Max 200 Mbps Bit rate input
HDMI & VGA Output up to 1080P
Up to 2 x 6 TB = 12 TB

0.00 ৳ 0.0 BDT 0.00 ৳ VAT Excluded

0.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us
    SKU :
    DVR0026
    Category :
    DVR
    Share :
    Terms and Conditions

    Specification

    System
    Main ProcessorQuad-core embedded processor
    Operating SystemEmbedded LINUX
    Audio and Video
    IP Camera Input32 Channel
    Two-Way Talk1 Channel Input, 1 Channel Output, RCA
    Display
    Interface1 HDMI, 1 VGA
    ResolutionHDMI: 3840 x 2160 , 1920 x 1080 , 1280 x 1024, 1280 x 720 , 1024 x 768
    VGA: 1920 x 1080 , 1280 x 1024, 1280 x 720 , 1024 x 768
    Decoding Capacity4-ch@8MP(30fps), 16-ch@1080P(30fps)
    Multi-Screen Display1/4/8/9/16/25/36
    OSDCamera title, Time, Camera lock, Motion detection, Recording
    Recording
    CompressionSmart H.265+/H.265/Smart H.264+/H.264/MJPEG
    Resolution12MP with 15fps, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, CIF with 30fps
    Bit RateMax 200 Mbps Bit rate input
    Record ModeManual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
    Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
    Video Detection And Alarm
    Trigger EventRecording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
    Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering
    Alarm Input4 Channel
    Relay Output2 Channel
    Playback And Backup
    Sync Playback1/4/9/16
    Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
    Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
    Backup ModeUSB Device/Network
    Third Party Support
    Third Party SupportArecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more
    Network
    Interface1 RJ-45 Ports (10/100/1000Mbps)
    PoEN/A
    Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4IP
    Maximum User Access128 users
    Smart PhoneiPhone, iPad, Android
    InteroperabilityONVIF 2.4, SDK, CGI
    Storage
    Internal HDD2 SATA III Ports, up to 6TB capacity for each HDD
    HDD ModeSingle
    eSATAN/A
    Auxiliary Interface
    USB2 ports (1 Rear USB3.0,1 Front USB2.0)
    RS2321 Port, for PC Communication and Keyboard
    RS4851 Port, for PTZ Control
    Power
    Power SupplySingle, DC12V/4A
    Power Consumption<9.5W (Without HDD)
    Component Environment
    Operational Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
    Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
    Construction
    Dimensions1U, 375mm x 281.5mm x 56mm ;(14.8" x 11.1" x 2.2")
    Warranty
    Manufacturing Warranty01-year warranty

    Description

    Dahua NVR4232-4KS2 32 Channel Network Video Recorder (NVR)

    The Dahua NVR4232-4KS2 32 Channel Network Video Recorder (NVR) comes with H.265/H.264/MJPEG/MPEG4 codec decoding, Max 320Mbps incoming bandwidth, Up to 12Mp resolution preview&playback, HDMI/VGA simultaneous video output, and 3D intelligent positioning with Dahua PTZ camera. Here Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI. It is a flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. The Smart H.265+technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression. The Dahua NVR is compatible with numerous third-party devices, which makes it the perfect solution for surveillance systems that work independently of the video management system (VMS). It features an open architecture that supports multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with 4K cameras. This NVR has a 01-year warranty.

    ​
