Price:
2,400.00 ৳

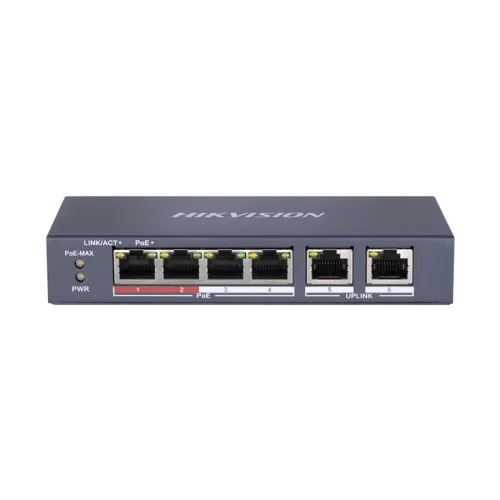

HIKVISION DS-3E0106P-E/M 4PORT POE UNMANAGED SWITCH
Key Features
Model: DS-3E0106MP-E/M
4 × 10/100 Mbps PoE RJ45 ports
2 × 10/100 Mbps RJ45 ports
PoE Power Budget: 45W
Switching Capacity: 1.2 Gbps
SKU :
HUB0444Category :
Network Switch-
Specification
Main Feature | |
| Type | Unmanaged POE Switch |
| Port | 4 × 10/100 Mbps PoE RJ45 ports and 2 × 10/100 Mbps RJ45 ports |
| Data Transmission Rate | Switching capacity: 1.2 Gbps Packet forwarding rate: 0.89 Mpps |
| MAC Address Table | 2 K |
| Environment | Operating temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: -40°C to 85°C (-40°F to 185°F) Humidity conditions: 5% to 95% (no condensation) Relative humidity: 5% to 95% (no condensation) |
Hardware Features | |
| Power Supply | 48VDC, 1.04A |
| Dimensions (L x W x H) | 121.10mm × 27.60mm × 83.10mm (4.77'' × 1.09'' × 3.27'') |
| Weight | 0.19 kg (0.42 lb) |
Manufacture Warranty | |
| Warranty | 1 year |
Description
Hikvision DS-3E0106MP-E/M 4 Port Unmanaged PoE Switch
The Hikvision DS-3E0106MP-E/M 4-Port Unmanaged PoE Switch has four 10/100 Mbps PoE RJ45 ports and two additional 10/100 Mbps RJ45 ports, allowing for a variety of device connectivity options, including IP cameras and access points. With a 45W PoE power budget and end-span pin configuration (1/2 and 3/6), it efficiently powers PoE-compatible devices, making deployment easier with a single cable for both power and data. The Hikvision DS-3E0106MP-E/M 4-Port PoE Switch features auto MDI/MDIX functionality, which ensures seamless integration by automatically detecting cable types, and the store-and-forward switching mode, which ensures accurate data transfer with minimal errors. The Hikvision DS-3E0106MP-E/M 4-Port PoE Switch supports automatic MAC address learning and aging, as well as intelligent cache optimization for improved performance. Its 2K MAC address table and 768 Kbit internal cache ensure effective network management and reliability. With a switching capacity of 1.2 Gbps and a packet forwarding rate of 0.89 Mpps, this switch provides reliable performance for demanding applications. The Hikvision DS-3E0106MP-E/M 4-Port Unmanaged PoE Switch is built to last, with a metal casing and fan-free design that ensures quiet operation and low maintenance. It is ideal for noise-sensitive environments like small offices, retail spaces, and residential settings. The plug-and-play design eliminates configuration complexities, making it simple to set up and operate. Whether powering IP cameras for surveillance or connecting other PoE-enabled devices, the Hikvision DS-3E0106MP-E/M 4-Port PoE Switch is a reliable and cost-effective networking solution.
