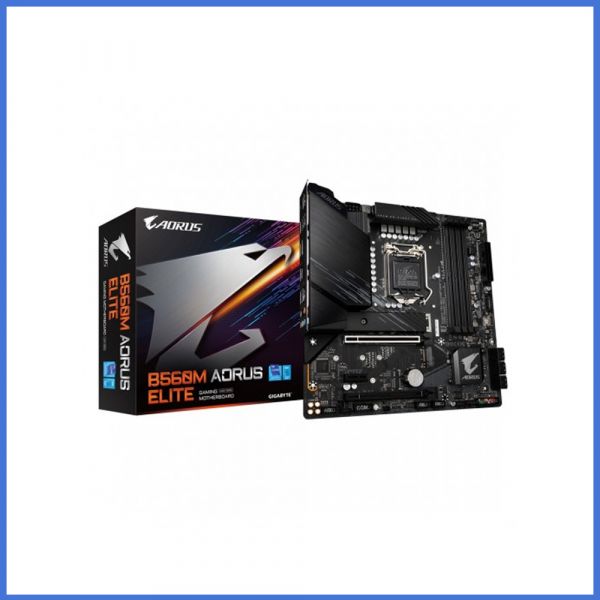

Gigabyte B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard

http://www.dolphin.com.bd/web/image/product.template/6446/image_1920?unique=1717dcf
(0 review)

Key Features
Model: B560M AORUS ELITE
Supports 11th and 10th Gen Intel Core Processors
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
Dual-Channel DDR4, 4 DIMMs
Addressable LED & RGB LED Strips

15,370.00 ৳ 15370.0 BDT 15,370.00 ৳ VAT Excluded

15,370.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us
    SKU :
    Mot-B560M-A
    Category :
    Motherboard
    Tags :
    Share :
    Terms and Conditions

    Specification

    Basic Information
    Supported CPU11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
    10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
    * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
    ChipsetIntel B560 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
    AudioRealtek Audio codec
    High Definition Audio
    2/4/5.1/7.1-channel
    Expansion Slots
    PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
    *Supported by 11th Generation processors only.
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    1 x PCI Express x1 slot
    (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
    M.2 Socket2 x M.2 Socket 3 connectors
    Memory
    TypeDual channel memory architecture
    Slots4 x DDR4 DIMM
    Supported Memory11th Generation Intel Core i9/i7/i5 processors:
    Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    10th Generation Intel Core i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
    10th Generation Intel Core i5/i3 /Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory128 GB
    Graphics
    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version, HDCP 2.3
    Connector & Ports
    HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    Display Port (s)1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    USB (s)Chipset:
    1 x USB Type-C port on the back panel, with USB 3.2 Gen2 support
    1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
    3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header)
    2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 3.2 Gen 1 Hub:
    1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header
    2 x USB 3.2 Gen1 ports available through the internal USB header
    Chipset+ 2 USB 2.0 Hubs:
    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Realtek2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
    Audio6 x audio jacks
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    6 x SATA 6Gb/s connectors
    2 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt add-in card connectors
    1 x serial port header
    1 x Clear CMOS jumper
    1 x Q-Flash Plus button
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special FeaturesSupport for APP Center
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Bundled SoftwareNorton Internet Security (OEM version)
    Realtek 8125 Gaming LAN Bandwidth Control Utility
    Warranty Information
    Manufacturing Warranty3 year

    Description

    GIGABYTE B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard

    GIGABYTE B560M AORUS ELITE Motherboard supports 11th and 10th Gen Intel Core Series Processors. It has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It features direct 12+1 Phases Digital VRM with Low RDS(on) MOSFETs. It has Shielded Memory Routing for Better Memory Overclocking. It comes with a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. It is powered by a fast 2.5GbE LAN with Bandwidth Management. It supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard It comes with Rear USB 3.2 Gen2 Type-C and Front USB 3.2 Gen1 Type-C for Connecting Devices. It has a pre-installed IO Shield for Easy and Quick Installation. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors and hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. It has 3-year warranty.
