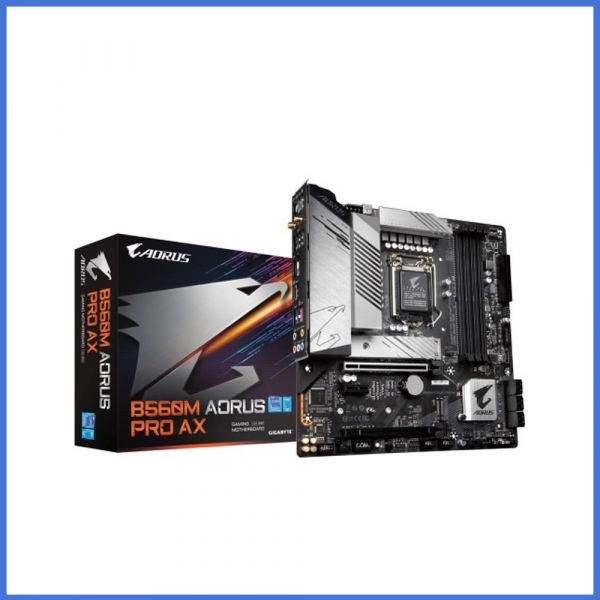

GIGABYTE B560M AORUS PRO AX Wi-Fi Intel 10th and 11th Gen ATX Motherboard

http://www.daffodil-bd.com/web/image/product.template/6445/image_1920?unique=91a96fe
(0 review)

Key Features
Brand: Gigabyte
Model: B560M AORUS PRO AX Wi-Fi
Supports 10th and 11th Gen Intel Core Processors
AMP-UP Audio
Advanced Thermal Design
8 Solid pin CPU Power Connector

18,550.00 ৳ 18550.0 BDT 18,550.00 ৳ VAT Excluded

18,550.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us
    SKU :
    Mot-B560M
    Category :
    Motherboard
    Tags :
    Share :
    Terms and Conditions

    Specification

    Basic Information
    Supported CPU11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
    10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
    L3 cache varies with CPU
    ChipsetIntel B560 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
    Expansion Slots
    PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    1 x PCI Express x1 slot
    M.2 Socket1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)
    1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
    Memory
    TypeDDR4
    Slots4 x DIMM
    Supported Memory11th Generation Intel Core i9/ i7/ i5 processors:
    Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/ DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    10th Generation Intel Core i9/ i7 processors:
    Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
    10th Generation Intel Core i5/ i3 /Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory128 GB (32 GB single DIMM capacity)
    Graphics
    GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
    Connector & Ports
    HDMI1 x HDMI port, supporting a maximum resolution of 4096 x 2160@30 Hz
    Display Port (s)1 x DisplayPort, supporting a maximum resolution of 4096 x 2304@60 Hz
    USB (s)1 x USB Type-C port on the back panel, with USB 3.2 Gen2x2 support
    1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
    2 x USB 3.2 Gen1 ports on the back panel
    2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 3.2 Gen 1 Hub:
    1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header
    2 x USB 3.2 Gen1 ports available through the internal USB header
    Chipset+ 2 USB 2.0 Hubs:
    8 x USB 2.0/ 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
    Supported Storage1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)
    Chipset:
    1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
    6 x SATA 6Gb/s connectors
    Intel Optane Memory Ready
    AudioRealtek Audio codec
    High Definition Audio
    2/4/5.1/7.1-channel
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    6 x SATA 6Gb/s connectors
    2 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt add-in card connectors
    1 x serial port header
    1 x Clear CMOS jumper
    1 x Q-Flash Plus button
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special FeaturesWireless Communication module:
    Intel Wi-Fi 6 AX200
    Wi-Fi 802.11a/ b/ g/ n/ ac/ ax, supporting 2.4/ 5 GHz Dual-Band
    BLUETOOTH 5.1
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Warranty Information
    Manufacturing Warranty3 Years

    Description

    GIGABYTE B560M AORUS PRO AX Wi-Fi Intel 10th and 11th Gen ATX Motherboard

    The GIGABYTE B560M AORUS PRO AX Wi-Fi Intel 10th and 11th Gen ATX Motherboard uses a 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. This 100 % digital controller and additional 8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 11th Gen CPU. GIGABYTE B560M AORUS PRO AX Wi-Fi 11th Gen Motherboard B560M AORUS uses performance Fully Covered thermal design with high coverage MOSFET Heatsinks and a thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers, and gamers. With the best quality components and GIGABYTE R&D design capability, the B560M AORUS is a true beast among motherboards. Delivers high-quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers. The motherboard features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish. GIGABYTE is reputable for its product durability and high-quality manufacturing process. Needless to say, we use the best components we can find for the B560M AORUS motherboard and reinforce every slot to make each of them solid and durable. Good software goes hand in hand with perfect hardware. GIGABYTE motherboard bundles several useful and intuitive software to help users to control every aspect of the motherboard.
