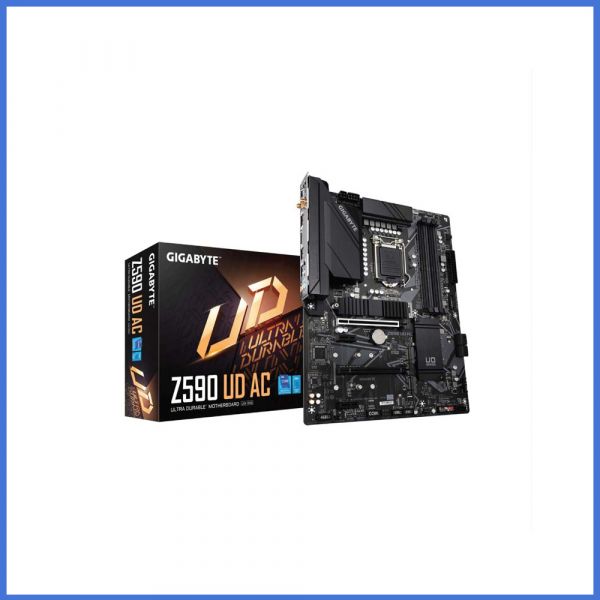

Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard

http://daffodil-bd.com/web/image/product.template/6444/image_1920?unique=a58e0fa
(0 review)


Brand: Gigabyte
Model: Z590 UD AC
Supports 11th and 10th Gen Intel Core Processors
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
Dual-Channel DDR4, 4 DIMMs
Onboard Intel 802.11ac Wireless & BT

23,100.00 ৳ 23100.0 BDT 23,100.00 ৳ VAT Excluded

23,100.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    Mot-Z590UD
    Category :
    Motherboard
    Share :
    Supported CPU

    11th Generation Intel Core I9 Processors / Intel Core I7 Processors / Intel Core I5 Processors
    10th Generation Intel Core I9 Processors / Intel Core I7 Processors / Intel Core I5 Processors / Intel Core I3 Processors/ Intel Pentium Processors / Intel Celeron Processors

    ChipsetIntel Z590 Express Chipset
    Supported Memory11th Generation Intel Core I9/I7/I5 Processors: Support For DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core I9/I7 Processors: Support For DDR4 2933/2666/2400/2133 MHz Memory Modules 10th Generation Intel Core I5/I3/Pentium/Celeron Processors: Support For DDR4 2666/2400/2133 MHz Memory Modules 4 X DDR4 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual-Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules
    BIOS1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    RAM TypeDDR4
    FromFactorATX Form Factor; 30.5cm X 24.4cm
    Internal I/O Ports1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 4 X System Fan Headers 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 1 X Q-Flash Plus Button 5 X SATA 6Gb/S Connectors 3 X M.2 Socket 3 Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X S/PDIF Out Header 1 X USB 3.2 Gen 1 Header 1 X USB Type-C Header, With USB 3.2 Gen 1 Support 2 X USB 2.0/1.1 Headers 2 X Thunderbolt Add-In Card Connectors 1 X Serial Port Header 1 X Clear CMOS Jumper
    Maximum Memory128 GB (32 GB Single DIMM Capacity)
    AudioRealtek Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel Support For S/PDIF Out
    Expansion Slots
    PCI1 X PCI Express X16 Slot, Running At X16 (PCIEX16)
    * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot.
    (The PCIEX16 Slot Conforms To PCI Express 4.0 Standard.) (Note)
    1 X PCI Express X16 Slot, Running At X4 (PCIEX4)
    2 X PCI Express X1 Slots
    (The PCIEX4 And PCIEX1 Slots Conform To PCI Express 3.0 Standard.)
    M.2 Socket1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 PCIe 4.0 X4 SSD Support) (M2P_CPU) (Note)
    Chipset:
    1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 SATA And PCIe 3.0 X4/X2 SSD Support) (M2A_SB)
    1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 PCIe 3.0 X4/X2 SSD Support) (M2M_SB)
    LANRealtek 2.5GbE LAN Chip (2.5 Gbit/1 Gbit/100 Mbit)
    Graphics

    Integrated Graphics Processor-Intel HD Graphics Support:
    1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz
    * Support For DisplayPort 1.2 Version And HDCP 2.3
    Support For AMD Quad-GPU CrossFire And 2-Way AMD CrossFire Technologies

    USBChipset: 2 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel 6 X USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) 1 X USB Type-C Port With USB 3.2 Gen 1 Support, Available Through The Internal USB Head
    Audio Jack3 X Audio Jacks
    DisplayPort1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3
    Supported StorageCPU: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 PCIe 4.0 X4 SSD Support) (M2P_CPU) (Note) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 SATA And PCIe 3.0 X4/X2 SSD Support) (M2A_SB) 1 X M.2 Connector (Socket 3, M Key, Typ
    BrandGigabyte



    Find Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard Best Price in Bangladesh. Find also other Motherboard on reasonable from our website. You will get Gigabyte Z590 UD home delivery in Dhaka city or pickup from our showroom.

    Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard Best Price in Bangladesh

    Basic Information

    Supported CPU11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
    10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
    ChipsetIntel Z590 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorATX Form Factor; 30.5cm x 24.4cm
    AudioRealtek audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out

    Expansion Slots

    PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    2 x PCI Express x1 slots
    (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
    M.2 Socket1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) (Note)
    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)

    Memory

    TypeDual-channel memory architecture
    Slots4 x DDR4 DIMM
    Supported Memory11th Generation Intel Core i9/i7/i5 processors:
    Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
    10th Generation Intel Core i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
    10th Generation Intel Core i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Dual-channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory128 GB (32 GB single DIMM capacity)

    Graphics

    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

    Connector & Ports

    Display Port (s)1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
    USB (s)Chipset:
    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
    Chipset+2 USB 2.0 Hubs:
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
    Supported StorageCPU:
    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) (Note)
    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
    5 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

    Intel Optane Memory Ready
    Audio3 x audio jacks
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    4 x system fan headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x Q-Flash Plus button
    5 x SATA 6Gb/s connectors
    3 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB 3.2 Gen 1 header
    1 x USB Type-C header, with USB 3.2 Gen 1 support
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt add-in card connectors
    1 x serial port header
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    Warranty Information

    Manufacturing Warranty03 years warranty

    Others

    Special FeaturesSupport for APP Center
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install

    Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard

    Gigabyte Z590 UD AC ATX Motherboard Supports 11th and 10th Gen Intel Core Series Processors. It features Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It has Direct 12+1 Phases Digital VRM Solution with 50A DrMOS and Shielded Memory Routing for Better Memory Overclocking. Gigabyte Z590 UD comes with Enlarged VRM Heatsink with Air-Flow Grooving to Increased Surface Contact and Fast 2.5GbE LAN with Bandwidth Management. Gigabyte Z590 UD has Onboard Intel 802.11ac Wireless & BT with High-Gain Antenna. Gigabyte Z590 UD also has Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard and USB 3.2 Gen2 and Front USB Type-C for Fast and Versatile Connections. Pre-installed IO Shield for Easy and Quick Installation makes Gigabyte Z590 UD easy to use. The RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, and support Addressable LED & RGB LED Strips. Smart Fan comes with 6 Features Multiple Temperature Sensors, and Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. Gigabyte Z590 UD has 3 years warranty.
