Price:
36,600.00 ৳

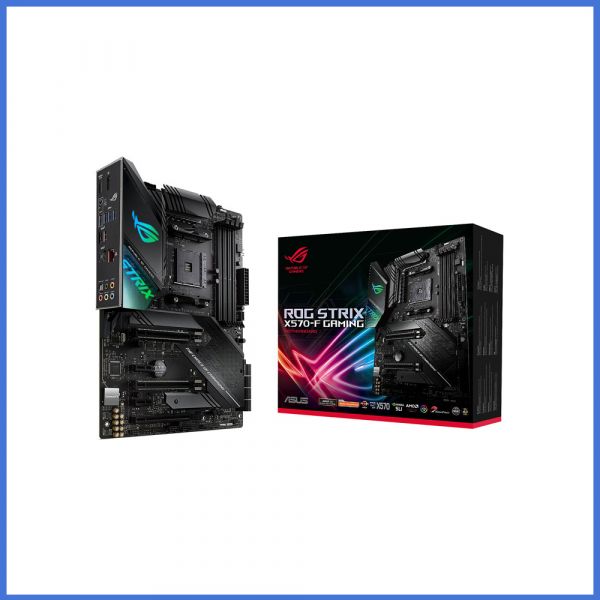

Asus Rog Strix X570-F AMD ATX Gaming Motherboard
Key Features
Brand: ASUS
Model: Asus Rog Strix X570-F
Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Chipset: AMD X570, Memory: 4 x DDR4, Max 128 GB
5-Way Optimization
Optimal Power Solution:14 power stages
SKU :
MOT010Category :
MotherboardSpecification
Basic Information | |
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors |
| Chipset | AMD X570 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Expansion Slots | |
| PCI | 1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. |
| M.2 Socket | Yes |
Memory | |
| Type | 3rd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture |
| Slots | 3rd Gen AMD Ryzen Processors : 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors : 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset : 1 x PCIe 4.0 x16 (max at x4 mode) 1 2 x PCIe 4.0 x1 |
| Maximum Memory | 128GB, DDR4 |
Graphics | |
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Max Shared Memory | Max. 128GB |
| Connector & Ports | |
| HDMI | Yes |
| Display Port (s) | Yes |
| USB (s) | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
| LAN Port (s) | Realtek® L8200A ASUS Turbo LAN Utility TUF LANGuard |
| Supported Storage | 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link |
| Internal I/O Ports | 1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header |
Warranty Information | |
| Manufacturing Warranty | 03 Years Warranty |
Description
Asus Rog Strix X570-F AMD ATX Gaming Motherboard
The ROG Strix X570-F Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features, comprehensive cooling options and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you need to build a formidable weapon to rise above the rest.
DESIGN & CUSTOMIZATION
The arrival of ROG Strix X570-F Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. Together with the most diverse ecosystem of components in the industry, ROG Strix X570-F Gaming makes creating and customizing a gaming rig that reflects your personal style wonderfully easy.
