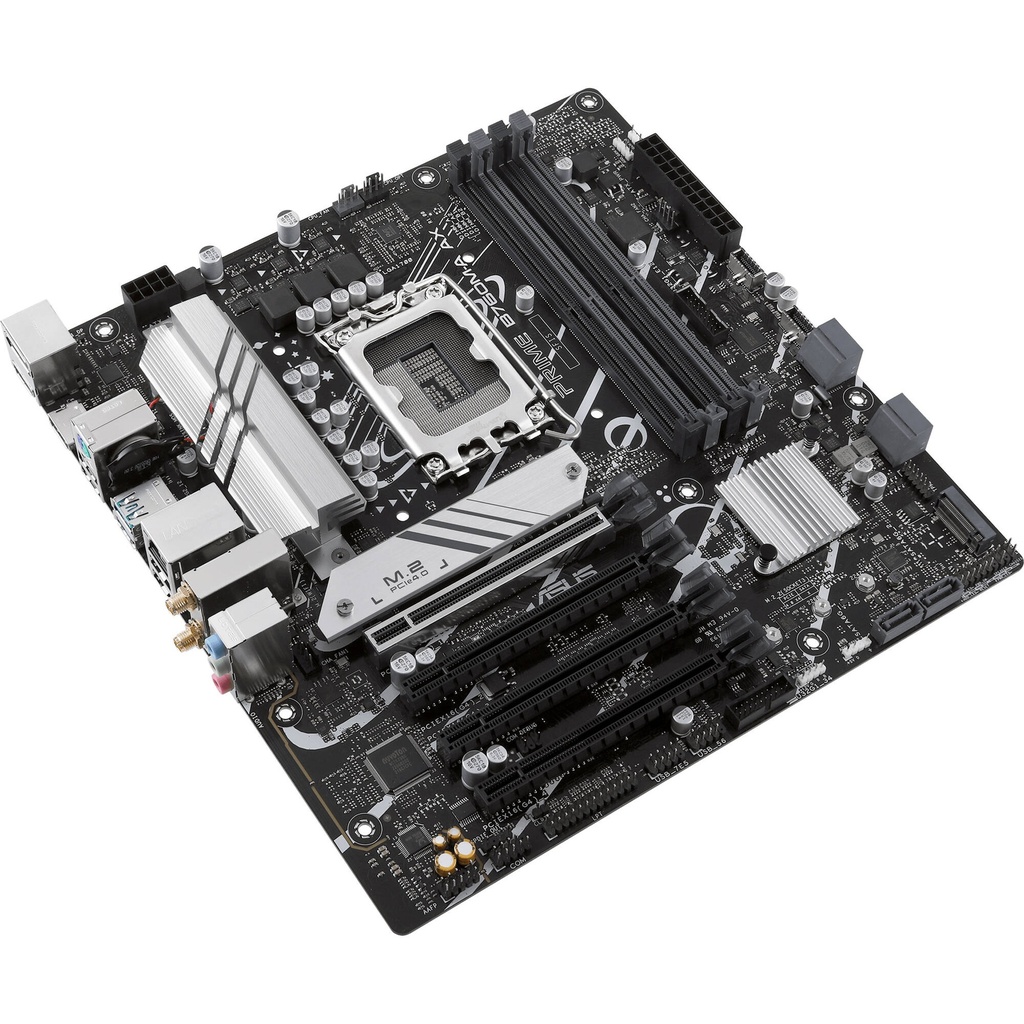

Asus PRIME B760M-A mATX Motherboard

http://www.daffodil-bd.com/web/image/product.template/62413/image_1920?unique=4813b36
(0 review)

Key Features
Model: PRIME B760M-A
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 4 x DIMM, Max. 128GB, DDR5
Graphics Output: 1 x DisplayPort, 2 x HDMI
Features: 1 x Realtek 2.5Gb Ethernet

20,700.00 ৳ 20700.0 BDT 20,700.00 ৳ VAT Excluded

20,700.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us
    SKU :
    MOT01049
    Category :
    Motherboard
    Share :
    Terms and Conditions

    Specification

    Basic Information
    Supported CPUIntel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
    ChipsetIntel B760 Chipset
    BIOS128 Mb Flash ROM, UEFI AMI BIOS
    Form FactormATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
    AudioRealtek 7.1 Surround Sound High Definition Audio CODEC
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    Expansion Slots
    PCIIntel 13th & 12th Gen Processors
    1 x PCIe 4.0 x16 slot
    Intel B760 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0 x16 slot (supports x1 mode)
    M.2 SocketTotal supports 2 x M.2 slots
    Memory
    TypeDDR5
    Slots4 x DIMM
    Supported Memory4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    OptiMem II
    Maximum MemoryMax. 128GB
    Graphics
    Graphics1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4)
    2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
    Connector & Ports
    HDMI2 x HDMI port
    Display Port (s)1 x DisplayPort
    USB (s)Rear USB (Total 6 ports)
    2 x USB 3.2 Gen 2 ports (2 x Type-A )
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 10 ports)
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    1 x USB 2.0 header supports 1 additional USB 2.0 port
    LAN Port (s)1 x Realtek 2.5Gb Ethernet
    Supported StorageTotal supports 2 x M.2 slots and 4x SATA 6Gb/s ports
    Intel 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
    Audio3 x Audio jacks
    Internal I/O PortsInternal I/O Connectors
    Fan and Cooling-related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    1 x USB 3.2 Gen 1 connector (supports USB Type-C)
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    1 x USB 2.0 header supports 1 additional USB 2.0 port
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x LPT header
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1pin)
    1 x 20-3 pin System Panel header with Chassis intrude function

    Back Panel I/O Ports
    2 x USB 3.2 Gen 2 ports (2 x Type-A )
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    2 x HDMITM ports
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port
    Others
    Special FeaturesASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage Protection
    - SafeSlot Core+
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - ProCool
    Aura Sync
    - Aura RGB header
    - Addressable Gen 2 headers
    Bundled SoftwareASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 2+
    - Power Saving
    AI Suite 3
    - Digi+ VRM
    - PC Cleaner
    ASUS CPU-Z
    Norton Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    Warranty Information
    Manufacturing Warranty3 years warranty

    Description

    Asus PRIME B760M-A mATX Motherboard

    The Asus PRIME B760M-A is a microATX motherboard for Intel's LGA 1700 socket that offers a flexible foundation for developing powerful and feature-rich computer systems. This motherboard, designed for 14th, 13th, and 12th Gen Intel processors, assures compatibility with a wide selection of CPUs, giving consumers freedom in selecting their chosen processor. The strength of this motherboard is its many connection choices. PCIe 4.0 compatibility assures speedy data transfer speeds, making it perfect for high-performance graphics cards and storage devices. Additionally, two M.2 slots are available for high-speed NVMe SSDs, providing for faster data access and shorter load times. The Realtek 2.5Gb Ethernet offers quick and stable network access, while the rear USB 3.2 Gen 2 ports and front USB 3.2 Gen 1 Type-C connector offer simple and high-speed peripheral connectivity. The Asus PRIME B760M-A prioritizes cooling, including VRM heatsinks, an M.2 heatsink, and a PCH heatsink to maintain ideal temperatures during strenuous workloads. The integration of hybrid fan headers and Fan Xpert 2+ technology allows customers to precisely tailor and manage the cooling of their system. The motherboard has proprietary memory technologies such as ASUS Enhanced Memory Profile II and ASUS OptiMem II, which optimize memory performance and stability for improved system responsiveness. The Aura Sync RGB Lighting provides a touch of elegance to the system for consumers who value aesthetic customization. Synchronization with compatible RGB LED strips and other Aura Sync-capable gear is enabled by onboard Addressable Gen 2 headers and an Aura RGB header, allowing users to construct a coherent and visually appealing lighting system. The Asus PRIME B760M-A is a feature-rich mATX motherboard with powerful performance, extensive connections, effective cooling, and configurable aesthetics, making it a great choice for anyone wishing to construct a high-quality and visually pleasing system.
