Price:
11,700.00 ৳

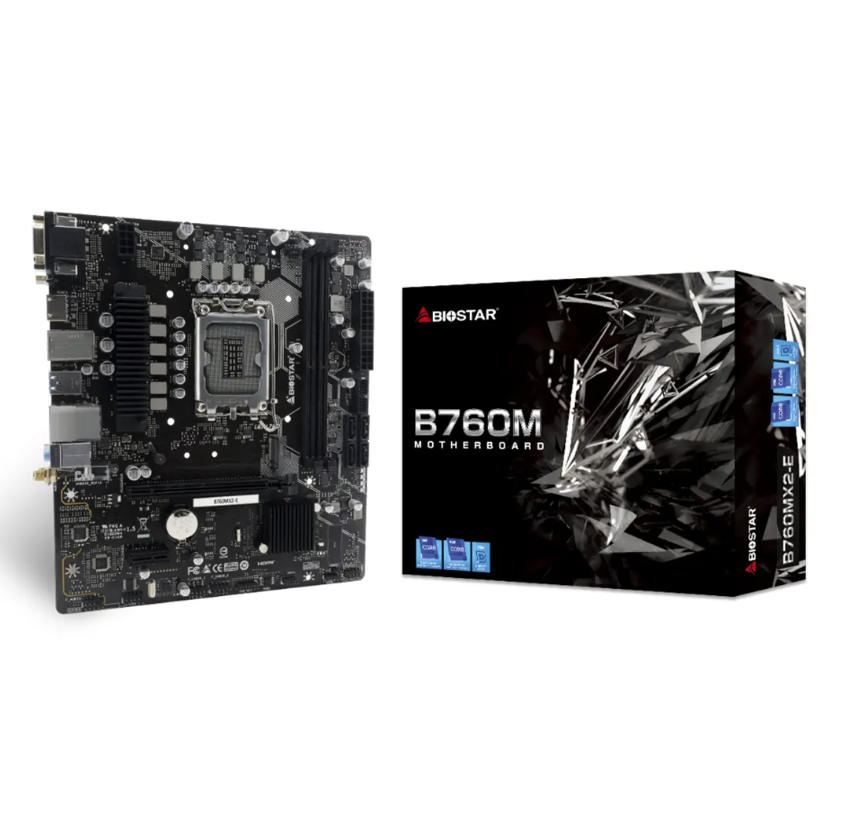

BIOSTAR B760MX2-E INTEL CHIPSET DESKTOP MOHTERBOARD
Key Features
Model: B760MX2-E
Supports 12th/ 13th Generation Intel Core Processor
Supports 2-DIMM DDR5 up to 96 GB Memory
4 x SATA III (6Gb/s) Connectors
Supports PCIe 4.0 M.2 (64Gb/s)
SKU :
MOT01065Category :
MotherboardSpecification
| Chipset | Intel B760 |
| CPU SUPPORT | Support for 12th / 13th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package * Please refer to www.biostar.com.tw for the CPU support list. |
| MEMORY | Supports Dual Channel DDR5 4800/ 5200(OC)/ 5400(OC)/ 5600(OC)/ 6000+(OC) 2 x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB of Memory Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module Support Intel® Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for the Memory support list. |
| INTEGRATED VIDEO | Supports DX12 Supports HDCP |
| STORAGE | Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports Intel B760 Chipset 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA): Supports M.2 Type 2242 /2260 /2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA SSD 4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology |
| LAN | Realtek 8125B 10/ 100/ 1000/ 2500 Mb/s auto-negotiation, Half / Full duplex capability |
| AUDIO CODEC | Realtek ALC897 7.1 Channels, High-Definition Audio |
| USB | 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | INTEL 12th/13th Processors 1 x PCIe 4.0 x16 Slot INTEL B760 Chipset 1 x PCIe 3.0 x1 Slot |
| REAR I/O | 1 x WIFI Antenna Port 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI 1 x VGA+DVI Port 2 x USB 3.2 (Gen1) port 4 x USB 2.0 port 1 x LAN port 3 x Audio Jack |
| INTERNAL I/O | 4 x SATA III Connector (6Gb/s) 1 x M.2 (E Key) Socket: Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header * M.2 (E key) Wi-Fi card is not provided |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L ) |
| OS SUPPORT | Supports Windows 10 (64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x Others |
Biostar B760MX2-E DDR5 mATX Motherboard
Biostar B760MX2-E is a feature-packed micro ATX motherboard designed to support the 12th, 13th, and 14th generation Intel Core processors. Equipped with the Intel B760 chipset, this motherboard provides a solid foundation for a wide range of computing needs. The LGA1700 socket accommodates Intel Core i9, i7, i5, i3, Pentium, and Celeron processors, offering flexibility for various performance levels. One notable feature of the B760MX2-E is its support for DDR5 memory, a next-generation RAM technology that enhances data transfer speeds and overall system performance. The motherboard supports dual-channel DDR5 memory with speeds ranging from 4800MHz to 6000+MHz (OC). With two DDR5 DIMM slots, the motherboard can handle a maximum of 96GB of memory, providing ample capacity for demanding applications and multitasking. The integrated video capabilities of the B760MX2-E are impressive, supporting DirectX 12 and HDCP for high-quality visuals. The motherboard also offers a versatile storage solution with 1 M.2 socket and 4 SATA III ports supporting various SSD modules and RAID configurations. Networking is handled by the Realtek 8125B LAN controller, providing reliable connectivity with support for speeds up to 2500 Mb/s. The audio experience is enhanced by the Realtek ALC897 audio codec, delivering 7.1 channels of high-definition audio for immersive sound. In terms of expansion, the motherboard features a PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for additional expansion cards. The rear I/O panel includes essential ports such as HDMI, VGA, DVI, USB 3.2, USB 2.0, LAN, and audio jacks, providing convenient connectivity options for peripherals and devices. Internally, the B760MX2-E offers multiple headers for additional USB ports, fans, power connectors, and more. The motherboard also incorporates hardware monitoring features, allowing users to keep track of CPU and system temperatures, fan speeds, and voltages. With a compact micro ATX form factor measuring 20.8 cm x 23.6 cm, the Biostar B760MX2-E strikes a balance between performance and space efficiency. It supports Windows 10 and 11 operating systems, making it compatible with the latest software and ensuring a seamless user experience. In conclusion, the Biostar B760MX2-E motherboard combines robust hardware support, advanced features, and a compact form factor, making it a suitable choice for users seeking a reliable foundation for their 12th, 13th, or 14th generation Intel Core-based systems.
