Price:
24,000.00 ৳

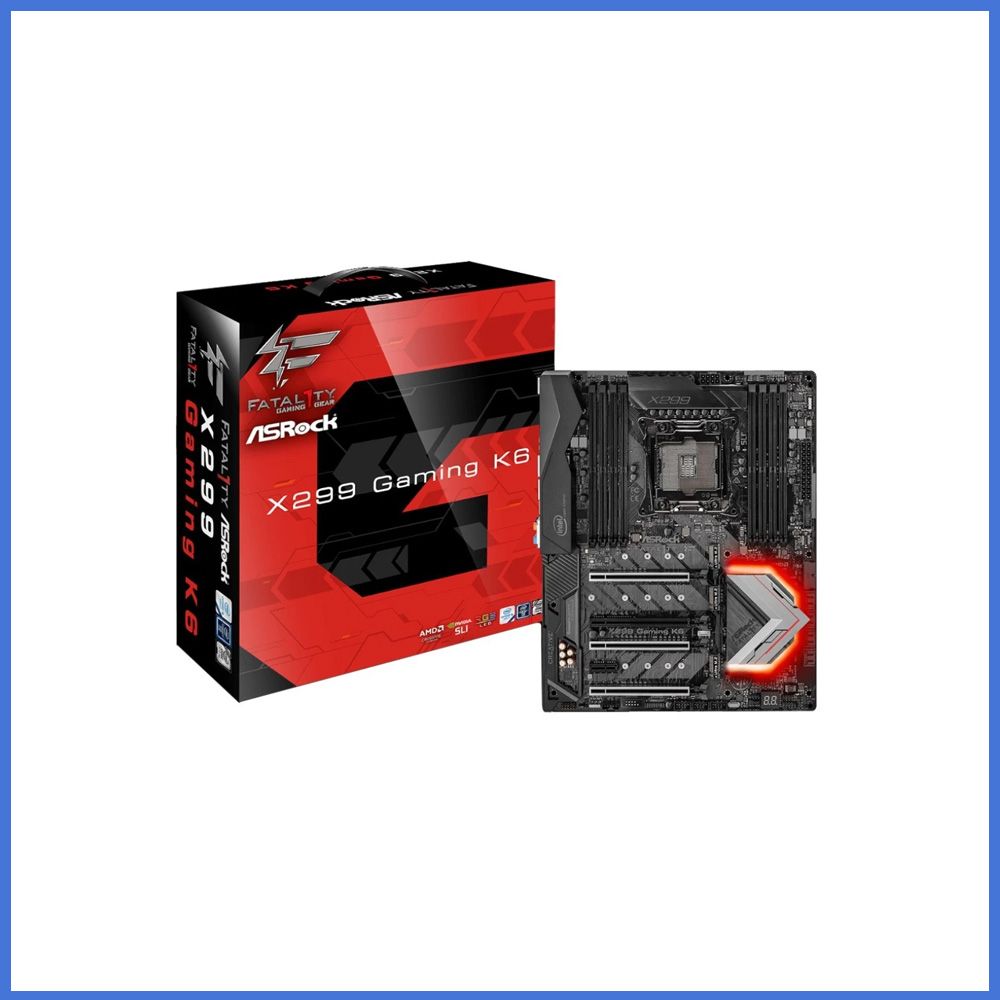

ASRock Fatal1ty X299 Gaming K6 Intel Motherboard
Key Features
Model: Fatal1ty X299 Gaming K6
Supports Intel Core X-Series Processor
Supports DDR4 4400+(OC)
4 PCIe 3.0 x16, 1 PCIe 3.0 x1
Intel X299, 1 x TPM Header
Specification
Motherboard | |
| Chipset | Intel® X299 |
| Slots | 4 x PCI Express 3.0 x16 Slots* - 1 x PCI Express 3.0 x1 Slot** - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™*** - Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™*** - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3) **If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x16/x8. If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x8/x0. If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x0/x0 or x8/x4/x8/x0. Supports NVMe SSD as boot disks **If PCIE4 slot is occupied, M2_2 slot will support M.2 PCI Express module up to Gen3 x2 (16 Gb/s). ***3-Way CrossFireX™ and 3-Way SLI™ are only supported with CPU with 44 lanes. |
| Supported Processors | Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket - Digi Power design - 11 Power Phase design - Supports Intel® Turbo Boost Max Technology 3.0* - Supports ASRock Hyper BCLK Engine III *Please note that the 4-Core processors only support Intel® Turbo Boost Technology 2.0. |
| Max Memory | Quad Channel DDR4 Memory Technology - 8 x DDR4 DIMM Slots - Supports DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports non-ECC RDIMM (Registered DIMM) - Max. capacity of system memory: 128GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| BIOS | 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 6.1 Compliant wake up events - SMBIOS 3.0 Support - CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD, PEGRCOMP Voltage Multi-adjustment |
| Onboard Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Front Out port - Individual PCB Layers for R/L Audio Channel - 15μ Gold Audio Connector - Supports Creative Sound Blaster™ Cinema 3 |
| Onboard LAN | Gigabit LAN 10/100/1000 Mb/s - 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Dual LAN with Teaming* - Supports Energy Efficient Ethernet 802.3az - Supports PXE *Teaming is supported on Windows® 10 RS2 and above. |
| Warranty | 03 Years |
Description
ASRock Fatal1ty X299 Gaming K6 Intel Gaming in Bangladesh
ASRock Fatal1ty X299 Gaming K6 motherboard is a renowned motherboard in Bangladesh. The ASRock Fatal1ty X299 Gaming K6 Intel Gamingis an Intel mainboard. The motherboard used an Intel X299 chipset. LGA2066 Sockets Supported. In this motherboard, you can use an Intel Core X-Series Processor. The ASRock Fatal1ty X299 Gaming K6 mainboard has a Quad memory channel and 8 memory slot. It supports DDR4 4400+(OC), 4266(OC), 4133(OC), 4000(OC), 3866(OC), 3800(OC), 3733(OC), 3600(OC), 3200(OC), 2933(OC), 2800(OC), 2666, 2400, 2133MHz non-ECC ram. Maximum ram supports 128GB, Also, you can use 3 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. ASRock Fatal1ty X299 Gaming K6 Intel Gamingcomes with Graphics. PCI Express Slot are 4 x PCI Express 3.0 x16, 1 x PCI Express 3.0 x1. The here audio chipset used Realtek ALC1220, Audio Channel available are 7.1 so you can enjoy crystal clear sound. For Network and Connectivity purposes the ASRock motherboard offers Dual Intel I219V, I211AT lan chipset and it’s speeds 10/100/1000Mbps USB port available Two USB3.1 Gen2, Eight USB3.1 Gen1. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a ATX motherboard. Yes it’s a RGB support motherboard, also you can 2 x RGB LED Headers RGB connector. The ASRock Fatal1ty X299 Gaming K6 Intel Gamingsupported operating system is Windows 10. You will get a 3 year brand warranty.
