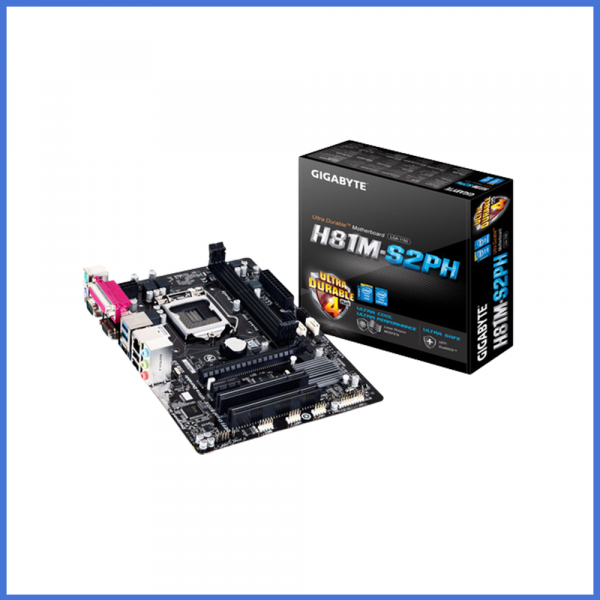

Gigabyte GA-H81M-S2PH Micro ATX Motherboard

http://www.daffodil-bd.com/web/image/product.template/5220/image_1920?unique=7887486
(0 review)

Key Features
Model: GA-H81M-S2PH
Supports 4th Generation Intel Core processors
GIGABYTE UEFI DualBIOS
All solid capacitors design
LAN with high ESD Protection

8,300.00 ৳ 8300.0 BDT 8,300.00 ৳ VAT Excluded 9,000.00 ৳

8,300.00 ৳ VAT Excluded 9,000.00 ৳

Not Available For Sale

    This combination does not exist.

    Contact Us
    SKU :
    MOT0620
    Category :
    Motherboard
    Tags :
    Share :
    Terms and Conditions

    Specification

    Basic Information
    Supported CPUSupport for Intel Core i7 processors/Intel Core i5 processors/Intel® Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
    ChipsetIntel H81 Express
    BIOS2 x 64 Mbit flash
    Use of licensed AMI EFI BIOS
    Support for DualBIOS™
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 24.4cm x 18.0cm
    Expansion Slots
    PCI1 x PCI Express x16 slot, running at x16
    1 x PCI Express x1 slot
    2 x PCI slots
    Memory
    TypeDual channel memory architecture
    Slots2 x 1.5V DDR3
    Supported MemorySupport for DDR3 1600/1333 MHz memory modules
    Graphics
    GraphicsIntegrated Graphics Processor - Intel HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200
    1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    Max Shared Memory1 GB
    Connector & Ports
    HDMI1 x HDMI port maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    D-Sub (s)1 x D-Sub port maximum resolution of 1920x1200
    USB (s)Up to 2 USB 3.0/2.0 ports on the back panel
    Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Realtek GbE LAN chip (10/100/1000 Mbit)
    Supported Storage2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
    2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
    AudioRealtek ALC887 codec
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    2 x SATA 6Gb/s connectors
    2 x SATA 3Gb/s connectors
    1 x CPU fan header
    1 x system fan header
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    2 x USB 2.0/1.1 header
    1 x serial port header
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )N/A
    Others
    Special FeaturesSupport for Q-Flash
    Support for Xpress Install
    Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    EasyTune
    EZ Setup
    USB Blocker
    Support for ON/OFF Charge
    Warranty Information
    Manufacturing Warranty03 Years

    Description

    Gigabyte GA-H81M-S2PH Micro ATX Motherboard

    GIGABYTE 8 Series motherboards support the latest 4th Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking, and device charging, GIGABYTE 8 series motherboards are in a class of their own. The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel Core processors and Intel H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel processor graphics provide significantly higher frame rates in the latest DX11 3D game titles. GIGABYTE Ultra Durable 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation, and extended motherboard lifespan. GIGABYTE motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attacks, hardware malfunction, improper OC settings, or power failure during the update process. Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments. GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes. On GIGABYTE 8 Series motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safeguard your important data during transfer. 4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE 8 series motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.
