Price:
8,460.00 ৳

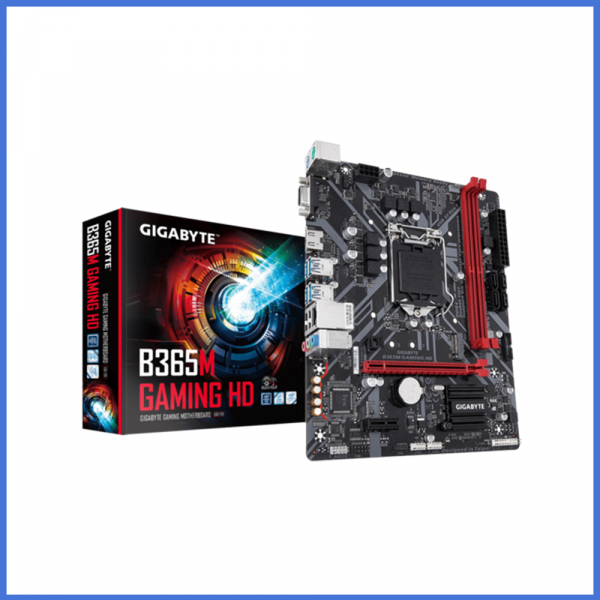

Gigabyte B365M Gaming HD Motherboard
Key Features
Model: B365M Gaming
Supports 9th and 8th Gen Processor
Dual Channel Non-ECC Unbuffered
RAM Slot-2 x DDR4 DIMM
Ultra-Fast M.2 with PCIe Gen3 X4
Specification
Basic Information | |
| Supported CPU | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package |
| Chipset | Intel® B365 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) |
Memory | |
| Type | Dual channel memory architecture |
| Slots | 2 x DDR4 DIMM |
| Supported Memory | Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor. |
| Maximum Memory | 32 GB |
Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
| Max Shared Memory | The maximum shared memory of 1 GB |
Connector & Ports | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| USB (s) | 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | 1 x RJ-45 port Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
Others | |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
| Bundled Software | Realtek 8118 Gaming LAN Bandwidth Control Utility |
Warranty Information | |
| Manufacturing Warranty | 03 years |
Description
Gigabyte B365M Gaming HD 9th Gen Motherboard
The Gigabyte B365M Gaming Micro ATX is an ultra-durable motherboard compatible with Intel 9th and 8th gen core i3, i5 i7, and i9 processors with supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface. Considering the graphics, it will support integrated Intel HD Graphics having 1GB shared graphics memory with max resolution of 1920 x 1200 @ 60 Hz DVI-D & D-Sub port and 4096x2160@30 Hz of HDMI ports. This latest motherboard has the facility of USB 3.1 Gen 1 ports, USB 2.0/1.1 ports, and Intel Optane Memory Ready. For the extreme levels of gaming, it has GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, and Smart Fan 5.
