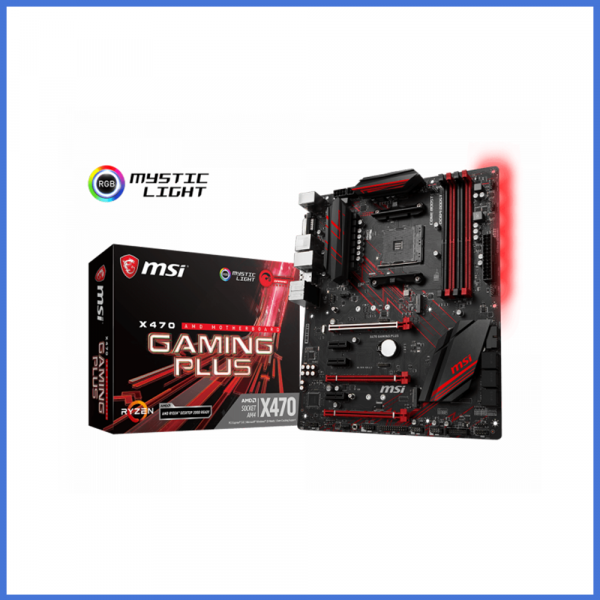

MSI X470 Gaming Plus Max AMD Motherboard

http://www.daffodil-bd.com/web/image/product.template/5249/image_1920?unique=a414809
(0 review)

 Key Features
Model: MSI X470 Gaming Plus Max
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
Lightning Fast Game experience
Supports DDR4, up to 4133(OC) MHz
Core Boost, DDR4 Boost, Audio Boost


12,800.00 ৳ 12800.0 BDT 12,800.00 ৳ VAT Excluded

12,800.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    MOT0800
    Category :
    Motherboard
    Share :

    Specification

    Basic Information
    Supported CPUSupports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
    ChipsetAMD X470 Chipset
    Form FactorATX Form Factor
    12 in. x 9.6 in. (30.5 cm x 24.4 cm)
    Expansion Slots
    PCI2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
    1st, 2nd and 3rd Gen AMD Ryzen™ Processors support x16/x0, x8/x8 mode
    Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors support x8/ x0 mode
    Athlon™ with Radeon™ Vega Graphics Processors support x4/x0 mode
    1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)
    3 x PCIe 2.0 x1 slots
    M.2 Socket2 x M.2 slot (Key M)
    M2_1 slot (from AMD processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0x2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices
    M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
    Memory
    TypeDual channel memory architecture
    Supports non-ECC UDIMM memoryy
    Supports ECC UDIMM memory
    Slots4 x DDR4 memory slots
    Supported MemorySupports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC
    For AMD Ryzen Gen3 (R5/R7/R9)
    Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 Mhz by A-XMP OC MODE
    For AMD Other CPU
    Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE
    Maximum Memorysupports up to 64GB
    Graphics
    Graphics1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
    1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz1
    Only support when using Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors
    1st, 2nd and 3rd Gen AMD Ryzen Processors
    Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors
    Max Shared MemoryMaximum shared memory of 2048 MB
    Connector & Ports
    HDMI1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
    DVI-D (s)1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
    USB (s)ASMedia ASM1143 Chipset
    2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
    AMD X470 Chipset
    4 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors
    6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
    AMD CPU
    4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
    LAN Port (s)1 x Realtek 8111H Gigabit LAN controller
    Supported StorageAMD X470 Chipset
    6 x SATA 6Gb/s ports
    2 x M.2 slot (Key M)1
    M2_1 slot (from AMD processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0x2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices
    M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
    AudioRealtek ALC892 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
    Internal I/O PortsPS/2 Combo Port
    USB 3.2 Gen1
    LAN Port
    HD Audio Connectors
    USB 2.0 Ports
    DVI-D Port
    HDMI Port
    USB 3.2 Gen1
    USB 3.2 Gen2
    Optical S/PDIF OUT
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    6 x SATA 6Gb/s connectors
    2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
    2 x USB 3.2 Gen1 connectors (support additional 4 USB 3.2 Gen1 ports)
    1 x 4-pin CPU fan connector
    1 x 4-pin PUMP fan connector (supports up to 2A)
    4 x 4-pin system fan connectors
    1 x Serial port connector
    1 x Parallel port connector
    2 x 5050 RGB LED strip 12V connectors
    1 x Front panel audio connector
    2 x System panel connectors
    1 x Chassis Intrusion connector
    1 x Clear CMOS jumper
    1 x Clear CMOS button
    TPM (Trusted Platform Module )1 x TPM module connector
    Warranty Information
    Manufacturing Warranty03 years warranty

    Description

    MSI X470 Gaming Plus Max RGB AMD Motherboard

    MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want. Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard and gaming rig without any issue. MSI motherboards are designed with both physical and device compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products. Complete your high performance experience with an array of performance enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment. MSI motherboards feature all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. MSI motherboards feature all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4 BOOST. MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 10Gb/s. MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one. Deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy breathtaking, gaming-changing sound. Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.
