Key Features:
Ready for 11th and 10th Gen Intel Processors
128 Mb Flash ROM, UEFI AMI BIOS
2 x DIMM, Max. 64GB, DDR4
1 x PCIe 4.0 x16 slots
1 x M.2 slot
Brand Asus
Supported CPU | 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
Chipset | Intel H510 |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | ATX |
PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 1 x PCIe 3.0 x1 slot |
M.2 Socket | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
Type | DDR4 |
Slots | Dual |
Supported Memory | 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
Graphics | 1 x D-Sub 1 x HDMI™ 1.4 / 2.0 |
HDMI | 1 x HDMI™ port |
USB (s) | Rear USB:Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A) Front USB:Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header supports additional 2 USB 2.0 ports |
LAN Port (s) | 1 x Intel I219-V 1Gb Ethernet ASUS LANGuard |
Supported Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
Audio | ALC887/ 897 Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header |
Manufacturing Warranty | 3 Years Replacement Warranty (*terms and conditions apply) |

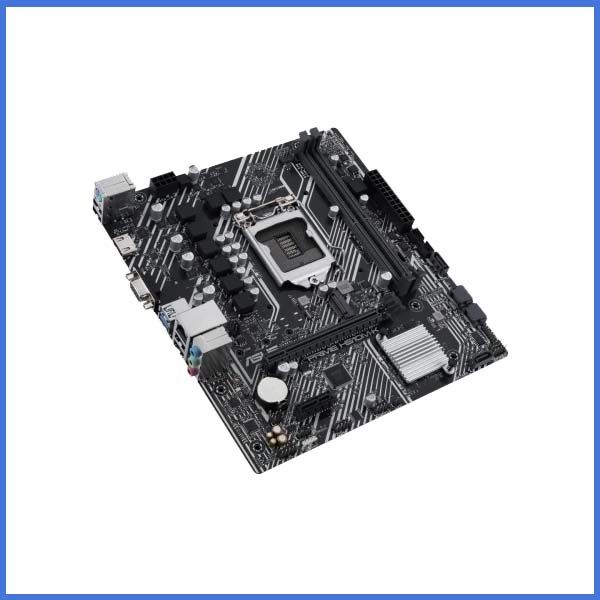

Asus PRIME H510M-K-SI motherboard is a renowned motherboard in Bangladesh. TheAsus PRIME H510M-K-SI DDR4 10th/11th Gen Intel LGA1200 Socket Motherboard (Commercial Edition) is an Intel mainboard. The motherboard used an Intel H510 chipset. LGA1200 Sockets Supported. In this motherboard, you can use an 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors. The Asus PRIME H510M-K-SI mainboard has a Dual memory channel and Memory Slot memory slot. It supportsDDR4 3200(OC), 2933, 2800, 2666, 2400, 2133 MHz ram. Maximum ram supports Memory Max.. Also, you can use 1 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. Asus PRIME H510M-K-SI DDR4 10th/11th Gen Intel LGA1200 Socket Motherboard (Commercial Edition) comes with Graphics. PCI Express Slot are One PCIe 4.0/3.0 x16, One PCIe 3.0 x1 The here audio chipset used Realtek ALC897/887. Audio Channel available are 7.1, so you can enjoy crystal clear sound. For Network and Connectivity purposes the Asus motherboard offers Intel I219-V lan chipset and it’s speeds 10/100/1000 Mbps. USB port available Three USB 3.2 Gen 1 Type-A, Five USB 2.0 Type-A. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a Form Factor motherboard. Yes it’s a RGB support motherboard, also you can 1 x RGB header RGB connector. The Asus PRIME H510M-K-SI DDR4 10th/11th Gen Intel LGA1200 Socket Motherboard (Commercial Edition) supported operating system is Windows 10. You will get a 3 Years Replacement Warranty brand warranty.
Find The Asus PRIME H510M-K-SI motherboard Price in Bangladesh. Buy Asus PRIME H510M-K-SI DDR4 10th/11th Gen Intel LGA1200 Socket Motherboard (Commercial Edition) is the competitive price in BD. You can purchase it from our website or computer shop.
