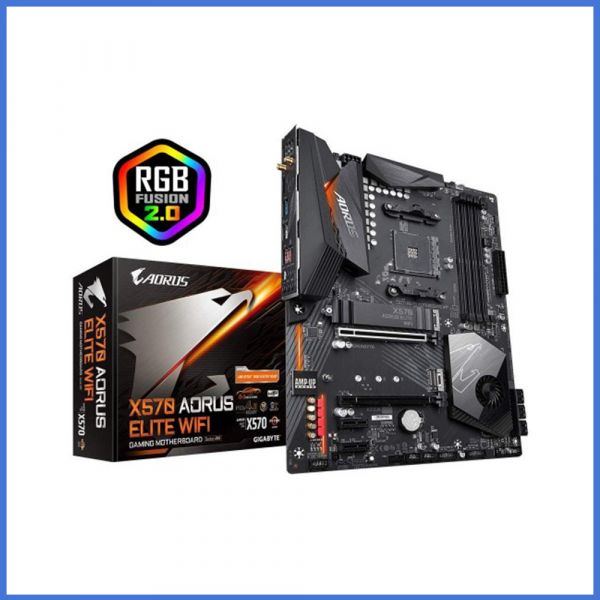

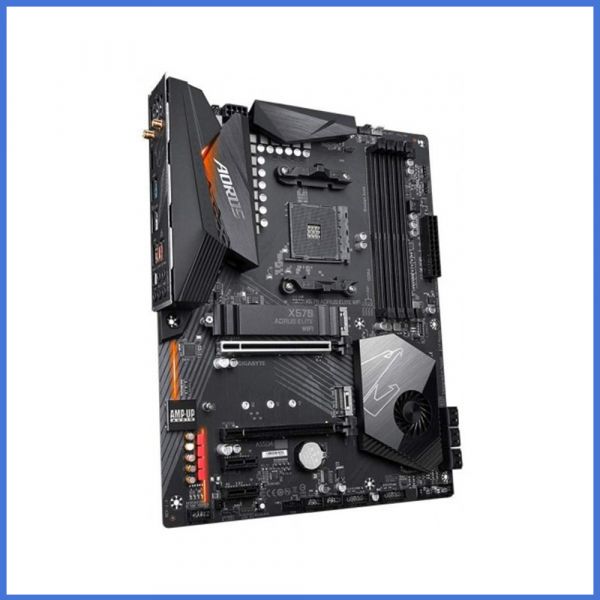

Gigabyte X570 AORUS ELITE WIFI AMD Motherboard

Price:

26,910.00 ৳
  2. Shop
  3. Gigabyte X570 AORUS ELITE WIFI AMD Motherboard
Gigabyte H310M M.2 Micro ATX Motherboard
Gigabyte H310M M.2 Micro ATX Motherboard
7,160.00 ৳
7,160.00 ৳
HP 250 G8 Core i5 11th Gen 8GB RAM 256GB SSD 15.6" FHD Laptop
HP 250 G8 Core i5 11th Gen 8GB RAM 256GB SSD 15.6" FHD Laptop
72,000.00 ৳
72,000.00 ৳

Gigabyte X570 AORUS ELITE WIFI AMD Motherboard

http://www.daffodil-bd.com/web/image/product.template/6453/image_1920?unique=1ff2151
(0 review)

Key Features
Model: X570 AORUS ELITE WIFI
Supported CPU: Ryzen 5000/ 5000 G /4000 G/ 3rd Gen/ 2nd Gen/ 2nd Gen Processors
Supported RAM: DDR4 4733 (O.C.), 4 DIMMs
Graphics Output: 1 x HDMI port
Features: Intel Dual Band 802.11ac WIFI & BT 4.2

26,910.00 ৳ 26910.0 BDT 26,910.00 ৳ VAT Excluded

26,910.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us
    SKU :
    MOT148
    Category :
    Motherboard
    Tags :
    Share :
    Terms and Conditions

    Specification

    Basic Information
    Supported CPUAMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors
    ChipsetAMD X570
    BIOS1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorATX Form Factor; 30.5cm x 24.4cm
    AudioRealtek ALC1200 codec
    High Definition Audio
    2/4/5.1-channel
    Support for S/PDIF Out
    Expansion Slots
    PCIIntegrated in the CPU (PCIEX16):
    · AMD Ryzen 5000 Series/ 3rd Gen Ryzen Processors:
    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    · AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen Processors:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    · 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
    Integrated in the Chipset (PCIEX4/PCIEX1):
    1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4)
    2 x PCI Express x1 slots, supporting PCIe 4.0/3.0
    M.2 Socket2 x M.2 Socket 3 connectors
    Memory
    TypeDDR4, Dual channel memory architecture
    Slots4 x DDR4 DIMM sockets
    Supported Memory3rd Generation AMD Ryzen processors:
    - Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    - 2nd Generation AMD Ryzen processors/AMD Ryzen with Radeon Vega Graphics processors:
    - Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
    - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    ECC mode supported by 3rd Gen AMD Ryzen/ 2nd Gen AMD Ryzen and only PRO sku of 2nd Gen AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors.
    - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    - Support for Extreme Memory Profile (XMP) memory modules
    Maximum MemoryUp to 128 GB (32 GB single DIMM capacity) of system memory
    Graphics
    GraphicsIntegrated Graphics Processor:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
    Max Shared MemoryMaximum shared memory of 16 GB

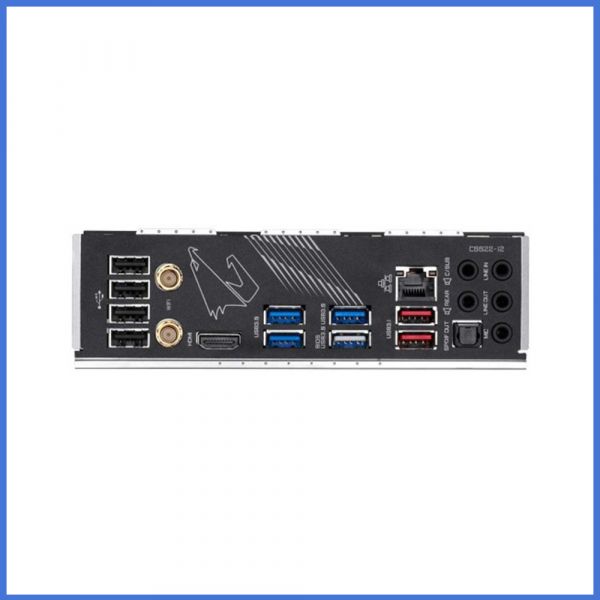

    Connector & Ports
    HDMI1 x HDMI port
    USB (s)Integrated in the CPU:
    4 x USB 3.2 Gen 1 ports on the back panel
    Integrated in the Chipset:
    1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    4 x USB 3.2 Gen 1 ports available through the internal USB headers
    Chipset+2 USB 2.0 Hubs:
    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Intel GbE LAN chip (10/100/1000 Mbit)
    Wireless Communication moduleWi-Fi 802.11 a/ b/ g/ n/ ac, supporting 2.4/ 5 GHz Dual-Band
    BLUETOOTH 4.2
    Support for 11ac wireless standard and up to 433 Mbps data rate
    Supported StorageIntegrated in the CPU (M2A_SOCKET):
    · AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen Processors:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
    · AMD Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
    Integrated in the Chipset (M2B_SOCKET):
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support)
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, and RAID 10
    Audio5 x audio jacks
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    2 x system fan headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x CPU cooler LED strip/RGB LED strip header
    2 x M.2 Socket 3 connectors
    6 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C port, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x Clear CMOS jumper
    1 x Q-Flash Plus button
    TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    Others
    Special FeaturesSupport for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Bundled SoftwareNorton Internet Security (OEM version)
    cFosSpeed
    Warranty Information
    Manufacturing Warranty03 years warranty

    Description

    Gigabyte X570 AORUS ELITE WIFI AMD AM4 ATX Motherboard

    The Gigabyte X570 AORUS ELITE WIFI AMD Motherboard supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors. This motherboard comes with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, 12+2 Phases Digital VRM Solution with DrMOS, Advanced Heatsink Design with Enlarge HeatsinkDual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guards, High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting.In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The X570 AORUS ELITE WIFI also supports Intel Gigabit LAN with cFosSpeed Internet Accelerator, Intel Dual Band 802.11ac WIFI & BT 4.2, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips, Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. The motherboard also designed with Front USB 3.1 Gen2 Type-C Header & HDMI 2.0 support, Integrated I/O Shield Armor, Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem. The X570 AORUS ELITE WIFI motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

    Ultimate Power Design

    This Gigabyte X570 AORUS ELITE WIFI motherboard requires the best CPU power design, To unleash the full potential of the 3rd Generation of AMD Ryzen CPU. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.

    Advanced Thermal Design

    This motherboard comes with enlarge heatsink surface area that improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic. Improve thickness of the thermal pad to 1.5mm, gives superior heat dissipation of MOSFETs.

    Smart Chipset Fan Heatsink

    The X570 AORUS ELITE WIFI provides 3 Smart Fan with different operating modes to minimize noise and extend the fan's longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation.

    Full PCIe 4.0 Design

    The X570 AORUS ELITE WIFI motherboard pushes the envelope once again by featuring a Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors, and delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts.

    Next Generation Connectivity

    A high-end product needs to be future-proof that stay up-to-date the system with the latest technology. X570 AORUS motherboards provide all next-generation networks, and storage to keep you up to speed.

    RGB Fusion 2.0

    In this X570 AORUS ELITE WIFI Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs. The RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X570 AORUS ELITE WIFI Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. The AORUS Motherboards will support 5v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

    Multi-Zone Light Show Design

    This motherboard now offers more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user can complete control over the LEDs which surround the motherboard with a dazzling array of products supported whereas RGB Fusion 2.0 is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like and have them match, dazzle, and impress. Learn more about RGB Fusion 2.0

    Smart Fan 5

    The X570 AORUS ELITE WIFI designed with Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. It also features Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

    This Gigabyte X570 AORUS ELITE WIFI comes with 03 years of warranty
