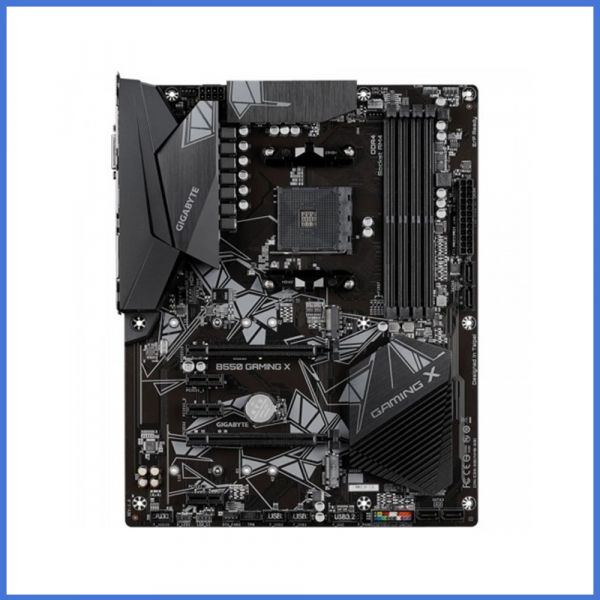

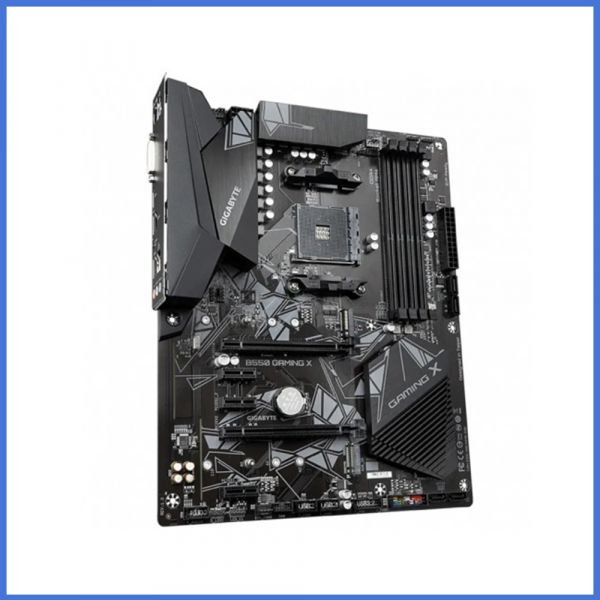

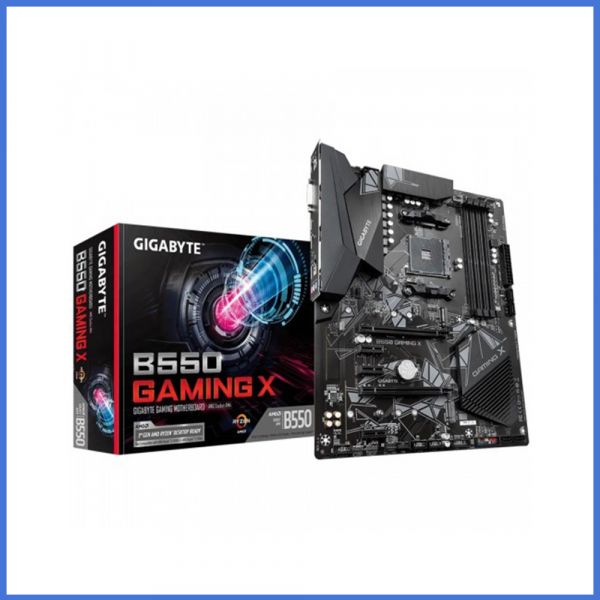

Gigabyte B550 GAMING X AM4 ATX Motherboard

http://www.daffodil-bd.com/web/image/product.template/6456/image_1920?unique=e1799d5
(0 review)

Key Features
Model: B550 GAMING X
Ryzen 5000 Series/ 3rd Gen & 3rd Gen with Radeon Graphics Processors
10+3 Phases Pure Digital VRM
Ultra-Fast NVMe PCIe Slots
HDMI, DVI-D Ports

25,300.00 ৳ 25300.0 BDT 25,300.00 ৳ VAT Excluded

25,300.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us
    SKU :
    MOT150
    Category :
    Motherboard
    Tags :
    Share :
    Terms and Conditions

    Specification

    Basic Information
    Supported CPUAMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
    ChipsetAMD B550
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorATX Form Factor; 30.5cm x 24.4cm
    Expansion Slots
    PCI1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
    3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
    Supporting PCIe 3.0 x2 mode
    3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:
    Supporting PCIe 3.0 x1 mode
    M.2 Socket1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
    3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
    3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
    Supporting SATA and PCIe 3.0 x4/x2 SSDs
    Memory
    TypeDDR4
    Slots4 x DIMM slots
    Supported MemoryAMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen:
    Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3rd Gen AMD Ryzen with Radeon Graphics processors:
    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
    Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum MemoryUp to 128GB (32 GB single DIMM capacity)
    Graphics
    GraphicsIntegrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
    1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Max Shared Memory16 GB

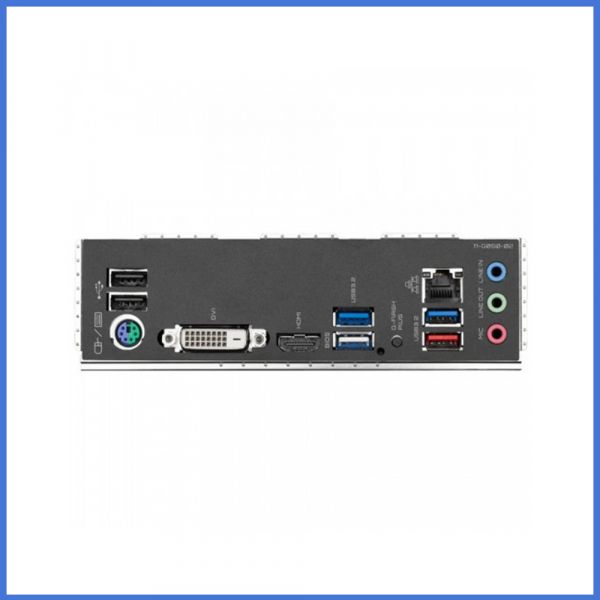

    Connector & Ports
    HDMI1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
    DVI-D (s)1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    USB (s)CPU:
    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    2 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
    1 x USB 3.2 Gen 1 port on the back panel
    2 x USB 3.2 Gen 1 ports available through the internal USB header
    2 x USB 2.0/1.1 ports on the back panel
    Chipset + USB 2.0 Hub:
    4 x USB 2.0/1.1 ports available through the internal USB headers
    LAN Port (s)Realtek GbE LAN chip (1000 Mbit/ 100 Mbit)
    Supported Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
    3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
    3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
    Supporting SATA and PCIe 3.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    Support for RAID 0, RAID 1, and RAID 10
    AudioRealtek ALC887 codec
    High Definition Audio
    2/4/5.1/7.1-channel
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x CPU cooler LED strip/RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    Others
    Special FeaturesSupport for APP Center
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Warranty Information
    Manufacturing Warranty03 Years

    Description

    GIGABYTE B550 GAMING X AM4 ATX Motherboard

    ​GIGABYTE B550 GAMING X AM4 ATX Motherboard maximizes your PC's potential with AMD StoreMI technology. The B550 motherboard comes with 10+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen Processor by offering incredible precision in delivering power.

    This Motherboard comes with NVMe PCIe 4.0/ 3.0 x4 and PCIe 3.0 x4 M.2 connectors onboard, GIGABYTE Motherboards allow users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. This motherboard delivers up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting RAID modes. Here Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation, which ensures the highest network priority of the game or application. This motherboard also provides users with the most comprehensive features and the fastest and smoothest Internet experience. In this motherboard, the HDMI 2.1 is backward compatible with HDMI 2.0/ 1.4 and offers 48 Gb/s of bandwidth – twice times more than the previous generation. This unlocks the potential for motherboard users to transfer multiple video streams, as well as a native cinematic 21:9 ratio, Full HDR, and HDCP 2.3 support, to offer the best visual experience for viewers. In this motherboard, the RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB and also the Addressable LED light strips for their PC build. Already feature-filled with colors and patterns, RGB Fusion 2.0 is now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable users can experience even more patterns, styles, and illuminations. With the B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. This RGB Fusion 2.0 provides you with a better solution for customizing the lighting effects across all supported devices. From motherboards, and graphics cards to peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. The latest gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.​
