Basic Information | |
Base Frequency | 3.60 GHz |
Maximum Turbo Frequency | 4.20 GHz |
Cache | 6 MB SmartCache |
Cores | 4 |
Threads | 4 |
Default TDP | 65 W |
Memory Specifications | |
Maximum Size | 64 GB |
Maximum Speed | 37.5 GB/s |
Type | DDR4-2400 |
Max Number of Channels | 2 |
Graphics Specifications | |
Processor Graphics | Intel UHD Graphics 630 |
Base Frequency | 350 MHz |
Max Dynamic Frequency | 1.10 GHz |
Max Video Memory | 64 GB |
Max Resolution | Max Resolution (HDMI 1.4) 4096x2304@24Hz Max Resolution (DP) 4096x2304@60Hz Max Resolution (eDP - Integrated Flat Panel) 4096x2304@60Hz |
Warranty Information | |
Manufacturing Warranty | 03 Years (No Warranty for Fan or Cooler) |
This processor comes with a new breed that come with a enabled integrated GPU, so a separate graphics card is required for its functionality. This new 9th gen Coffee Lake microarchitecture is manufactured with the 14nm process that comes with four cores but lacks in HyperThreading. As this chip is updated to the latest BIOS revision, it nicely fits into any Intel 300-series motherboard. Focusing on this, all the major motherboard manufacturers have already started BIOS updates for their 300-series lineup

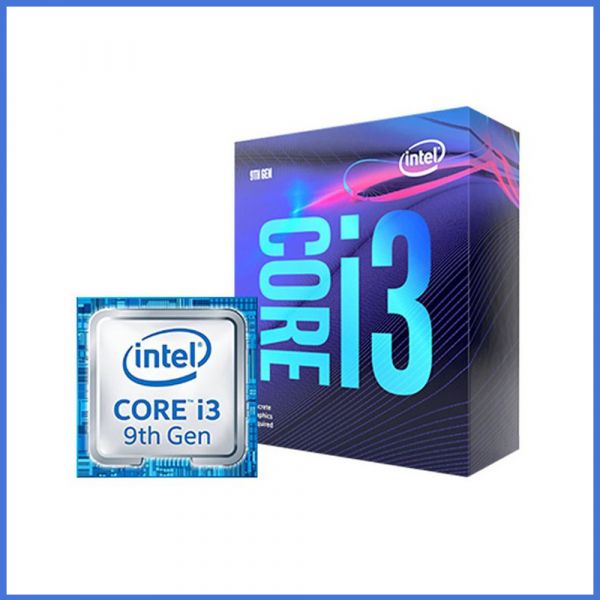

Intel 9th Generation Core i3-9100 Processor having the base frequency of 3.60 GHz that can be reached as max turbo frequency at 4.20 GHz. It has the L3 SmartCache of 6 MB containing 4 cores and 4 threads. With the bus speed of 8 GT/s DMI3, it has thermal design power (TDP) rating of 64W. This latest microchip has few expansion options such 3.0 PCI express revision having configured up to 1x16, 2x8, 1x8+2x4 and maximum 16 lanes. Considering the memory this processor has dual channel of max 64GB of size that supports up to DDR4-2400 bus speed.
On the process of advance technology this processor has 2.0 Intel turbo boost and Intel virtualization that is directed to I/O (VT-d). This Optane™ Memory supported chip also has Intel VT-x with extended page tables (EPT). Furthermore, Enhanced Intel SpeedStep® and Intel® Identity Protection Technology are integrated to increase its efficiency. Enjoy this latest processor at best price with 03 years of warranty facility (No Warranty for Fan or Cooler).
