Key Features:
Model: NM790
Sequential Read & Write Speed: 7200MB/s & 4400MB/s
High-speed PCIe Gen3x4 interface
Form Factor: M.2 2280
Vibration-resistant: 10~2000Hz
Key Features | |
Capacity | 512GB |
Form Factor | M.2 2280 |
Interface | PCIe Gen4x4 |
Sequential R/W | Sequential read up to 7200MB/s & sequential write up to 4400MB/s |
MTBF | 1,500,000 Hours |
TBW | 500TBW |
Physical Specification | |
Dimension | 80 x 22 x 2.45 mm (3.15” x 0.87” x 0.10”) |
Weight | 6g / 0.013 lbs |
Temperature | |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Shock resistance | 1500G, duration 0.5ms, Half Sine Wave |
Vibration Resistance | 10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis (X,Y,Z) |
Warranty | |
Manufacturing Warranty | 5 years |

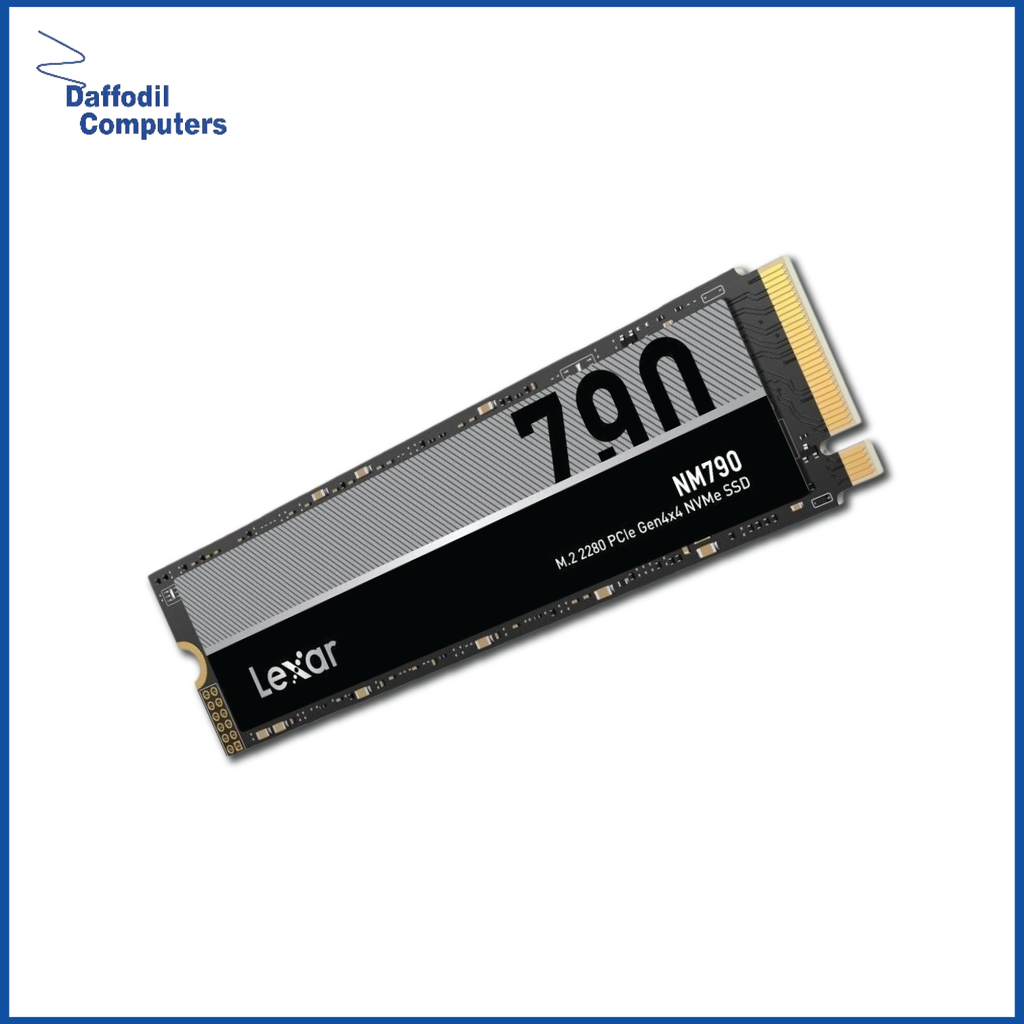

The Lexar NM790 512GB SSD features a blistering 7200MB/s sequential read, 4400MB/s sequential write1, and random read rates of up to 1,000,000 IOPs. The Lexar NM790 M.2 2280 PCIe Gen 4x4 NVMe SSD performs twice as fast as PCIe Gen3 SSD. With up to 40% reduced power consumption than DRAM cache-enabled PCIe Gen 4 SSDs2, the Lexar NM790 M.2 2280 PCIe Gen 4x4 NVMe SSD not only saves energy but also allows you to go longer between laptop battery charges. The drive may use your device's DRAM memory thanks to Host Memory Buffer (HMB) 3.0, and Dynamic SLC cache writes to single-level-cell memory to keep speed stable for fluid and seamless operation. The Lexar NM790 SSD is built for professionals, gamers, and artists and offers the performance you need to raise your game and continue with your creative projects.
