Brand: Horion
Model: 75M5A
Display: 74.5" inch
Processor: ARM Cortex A73 + A53
Ram: 8GB DDR-4
Storage: 128 GB (M.2)
OS: Android 8
To Know More: 01792093170
Brand Horion
Warranty 12 Month

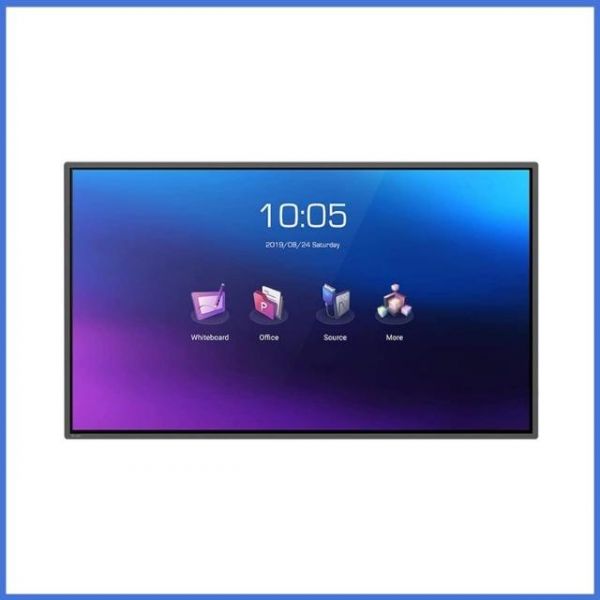

Find Horion 75M5A All in one Interactive Flat Panel price in Bangladesh. Find also other Interactive Flat Panel from our website. You will get free home delivery or pickup from our showroom.
Brand | Horion |
LCD Size Diagonal | 74.5" |
Panel type | D-LED |
Panel Resolution | 3840*2160(UHD) |
Brightness (typ)/(min) | 400cd/m² |
Contrast Ratio(typ) | 1200:1 |
Response Time(ms) | 8ms |
Aspect Ratio | 16:9 |
Pixel pitch | 0.4935mm*0.4935mm |
Refreshing frequency | 60Hz |
View area | 1895.04mm*1065.95mm |
Display colors | 1.07B(10bit) |
Life time | 30,000 hrs |
Pixel | 13M |
FOV | DIAGONAL 78° |
Array Size | MJPEG: 3840*2160(12fps),4139*3104(8fps) 1280*720(30fps),1920*1080(30fps) |
Touch technology | Infra-red |
Glass | 3.2mm AG Toughened glass |
Touch Resolution | 32767*32767 |
Multi-Touch | 20 Points |
Touch Accuracy | More than 90% of the touch area of plus or minus 1mm |
Response Time | <08ms |
Minimum Touch Object | ≥1.6mm (Single-point) ;≥2mm (Multipoint) |
Input Mode | Finger or Pen |
Output Form | HID Standard |
Theory Clicks | Unlimited |
Built-in system | Android |
OPS system | Windows 10 |
MIC Category | 8pcs omnidirectional silicon wheat |
Pick-up Distance | 8M |
Pick-up Angle | 180° |
Android Version | Android 8.0 |
CPU | ARM Cortex A73 + A53 |
CPU Working Frequency | 1.5GHz |
CPU Core | Quad Core |
GPU | Mali-G51 |
Flash +ROM | 3G DDR4 + 64GB |
WIFI | Support |
NFC | Support |
Bluetooth | Support |
Voltage | 100 V ~ 240 V/AC, 50/60 Hz |
Machine Power Consumption | ≤380W (without ops) |
OPS Power | 18V(DC)/5A |
Standby Power Consumption | ≤0.5W |
Power(AC)input | 1 |
Audio Power | 2 X 15W (front-facing) |
Interface Type | USB2.0 at full speed |
Working Voltage | DC+5V±5% |
Power Consumption | ≤2W |
Processor | Intel Core-i5 |
RAM | 8GB |
Storage (SSD) | M.2 128GB |
Working Temperature | 0 ~ 40 ºC |
Storage Temperature | -10 ~ 60°C |
Working Humidity | 20% ~ 80% RH |
Storage Humidity | 10% ~ 80% |
Image Model | Standard Computer Gorgeous Bright, Soft Nature、Exercise、Game、Automatic、Users |
The longest service time (Hour*Day) | 18Hours*7days |
|
Net Weight | 50Kg±1.5Kg |
Gross Weight | 70Kg±1.5Kg(Heavy Carton) |
Product Size (mm) (W x D x H) | 1722.41mm*87.08mm*1022.15mm |
Package Size (mm) (W x D x H) | 1880mm*280mm*1160mm(Heavy Carton) |
VESA | 4-M8 Screw Hole 800mm*600mm |
Housing Material (Surface Frame /Back Cover) | Aluminum/Sheet Metal |
Housing Color (Surface Frame /Back Cover)
| Gray (White)/Black |
Input Ports |
|
Accessories |
|
Accessories |
|
Certification | ISO, CE, Telecommunications |
Test Report | CE, CB, IEC, Japan, MIC |
Authorization Letter | Manufacture’s authorization letter |
