Price:
9,000.00 ৳

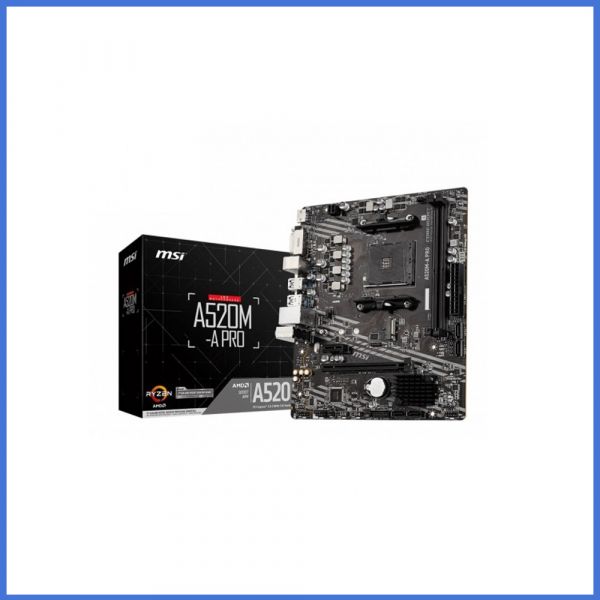

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
Key Features
Brand: MSI
Model: MSI A520M-A Pro
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
PCB with 2OZ Thickened Copper
Supports up to 4600(OC) MHz RAM
Core Boost, Turbo M.2 & Audio Boost
Specification
Basic Information | |
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD B520 |
| Form Factor | Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
Expansion Slots | |
| PCI | 1x PCIe 3.0 x1 slot 1x PCIe x16 slot |
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
Memory | |
| Type | Dual-channel memory architecture |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Maximum Memory | 64GB |
Graphics | |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
| Max Shared Memory | 16GB |
Connector & Ports | |
| HDMI | 1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz |
| DVI-D (s) | 1x DVI-D port, maximum resolution of 1920x1200@60Hz |
| USB (s) | AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN controller |
| Supported Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1xTPM module connector |
Others | |
| Special Features | RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
Warranty Information | |
| Manufacturing Warranty | 03 Years Warranty |
Description
MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. MSI PRO Series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. MSI OC LAB does not merely work hard on extreme overclocking. Compared to the A320 motherboard memory A-XMP profile, MSI does have great improvement in performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU but also creating the perfect conditions for your CPU overclocking.
