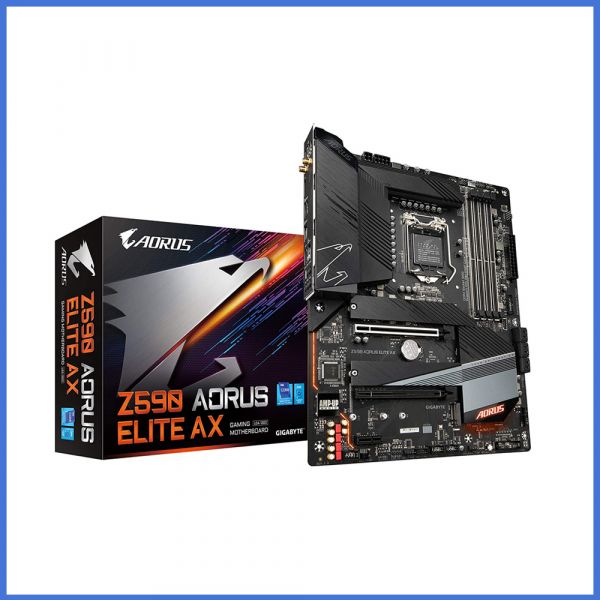

GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard

http://139.162.30.85/web/image/product.template/6443/image_1920?unique=a58e0fa
(0 review)


Brand: Gigabyte
Model: Z690 GAMING X DDR4
LGA1700 socket support 12th Gen Intel Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​
Direct 16+1+2 Digital VRM Design with 60A Power Stage
Fast 2.5GbE LAN with Bandwidth Management​

27,030.00 ৳ 27030.0 BDT 27,030.00 ৳ VAT Excluded

27,030.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    Mot-Z590
    Category :
    Motherboard
    Share :
    Supported CPU

    11th Generation Intel Core I9 Processors / Intel Core I7 Processors / Intel Core I5 Processors
    10th Generation Intel Core I9 Processors / Intel Core I7 Processors / Intel Core I5 Processors / Intel Core I3 Processors/ Intel Pentium Processors / Intel Celeron Processors
    * Limited To Processors With 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 Family.
    L3 Cache Varies With CPU

    ChipsetIntel Z590 Express Chipset
    Supported Memory11th Generation Intel Core I9/ I7/ I5 Processors: Support For DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Memory Modules 0th Generation Intel Core I9/ I7 Processors: Support For DDR4 2933/ 2666/ 2400/ 2133 MHz Memory Modules 10th Generation Intel Core I5/ I3/ Pentium/ Celeron Processors: Support For DDR4 2666/ 2400/ 2133 MHz Memory Modules Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/ 2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules
    BIOS1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    RAM TypeDDR4
    FromFactorATX Form Factor; 30.5cm X 24.4cm
    Internal I/O Ports1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 6 X SATA 6Gb/S Connectors 3 X M.2 Socket 3 Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen1 Header 2 X USB 2.0/1.1 Headers 2 X Thunderbolt Add-In Card Connectors 1 X Clear CMOS Jumper 1 X Q-Flash Plus Button
    Maximum Memory128 GB (32 GB Single DIMM Capacity)
    AudioRealtek ALC1220-VB Codec High Definition Audio 2/ 4/ 5.1/ 7.1-Channel Support For S/PDIF Out
    Expansion Slots
    PCI1 X PCI Express X16 Slot, Running At X16 (PCIEX16)
    (The PCIEX16 Slot Conforms To PCI Express 4.0 Standard.)
    1 X PCI Express X16 Slot, Running At X4 (PCIEX4)
    1 X PCI Express X1 Slot
    M.2 Socket1 X M.2 Connector (Socket 3, M Key, Type 2260/ 2280/ 22110 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU)
    Chipset:
    1 X M.2 Connector (Socket 3, M Key, Type 2260/ 2280/ 22110 SATA And PCIe 3.0 X4/ X2 SSD Support) (M2B_SB)
    1 X M.2 Connector (Socket 3, M Key, Type 2260/ 2280/ 22110 SATA And PCIe 3.0 X4/ X2 SSD Support) (M2P_SB)
    HDMI1 X HDMI Port
    LANRealtek 2.5GbE LAN Chip (2.5 Gbit/1 Gbit/100 Mbit)
    Graphics

    Integrated Graphics Processor-Intel HD Graphics Support:
    1 X DisplayPort, Supporting A Maximum Resolution Of 4096 X 2304 @60 Hz
    Support For AMD Quad-GPU CrossFire And 2-Way AMD CrossFire Technologies

    USB1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 2x2 Support 1 X USB Type-C Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header 2 X USB 3.2 Gen2 Type-A Ports (Red) On The Back Panel 5 X USB 3.2 Gen1 Ports (3 Ports On The Back
    Audio JackRealtek ALC1220-VB Codec High Definition Audio 2/4/5.1/7.1-Channel Support For S/PDIF Out
    DisplayPort1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz
    Supported Storage1 X M.2 Connector (Socket 3, M Key, Type 2260/ 2280/ 22110 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 2260/ 2280/ 22110 SATA And PCIe 3.0 X4/ X2 SSD Support) (M2B_SB) 1 X M.2 Connector (Socket 3, M Key, Type 22
    BrandGigabyte



    Find GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard Best Price in Bangladesh. Find also other Motherboard on reasonable from our website. You will get Gigabyte Z590 home delivery in Dhaka city or pickup from our showroom.

    GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard Best Price in Bangladesh

    Basic Information

    Supported CPU11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
    10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
    * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    L3 cache varies with CPU
    ChipsetIntel Z590 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorATX Form Factor; 30.5cm x 24.4cm
    AudioRealtek ALC1220-VB codec
    High Definition Audio
    2/ 4/ 5.1/ 7.1-channel
    Support for S/PDIF Out

    Expansion Slots

    PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    1 x PCI Express x1 slot
    M.2 Socket1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2B_SB)
    1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB)

    Memory

    Type DDR4
    Slots4 x DIMM
    Supported Memory11th Generation Intel Core i9/ i7/ i5 processors:
    Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    0th Generation Intel Core i9/ i7 processors:
    Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
    10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors:
    Support for DDR4 2666/ 2400/ 2133 MHz memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory128 GB (32 GB single DIMM capacity)

    Graphics

    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

    Connector & Ports

    Display Port (s)1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    USB (s)1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
    1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    2 x USB 3.2 Gen2 Type-A ports (red) on the back panel
    5 x USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hub:
    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
    Supported Storage1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2B_SB)
    1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB)
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    Intel Optane Memory Ready
    AudioRealtek ALC1220-VB codec
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
    Internal I/O Ports
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    6 x SATA 6Gb/s connectors
    3 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt add-in card connectors
    1 x Clear CMOS jumper
    1 x Q-Flash Plus button
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)

    Warranty Information

    Manufacturing Warranty03 years warranty

    Others

    Special FeaturesWireless Communication module:
    Intel Wi-Fi 6 AX201:
    WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
    BLUETOOTH 5.1
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard

    The GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard comes with upgraded power solution, incredible cooling design, all PCIe 4.0 design and outstanding connectivity to elevate your gaming experience to the next level. The motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 11th Gen CPU. With the best quality components and GIGABYTE R&D design capability, the Z590 AORUS is a true beast among motherboards. A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z590 AORUS ELITE AX provides all next generation network, storage, and WIFI connectivity to keep you up to speed. Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times. ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A). GIGABYTE Z590 AORUS Elite AX 11th Gen Motherboard features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish. GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z590 AORUS motherboard and reinforce every slot to make each of them solid and durable. Good software goes hand in hand with perfect hardware. GIGABYTE motherboard bundled several useful and intuitive software to help users to control every aspect of motherboard.
