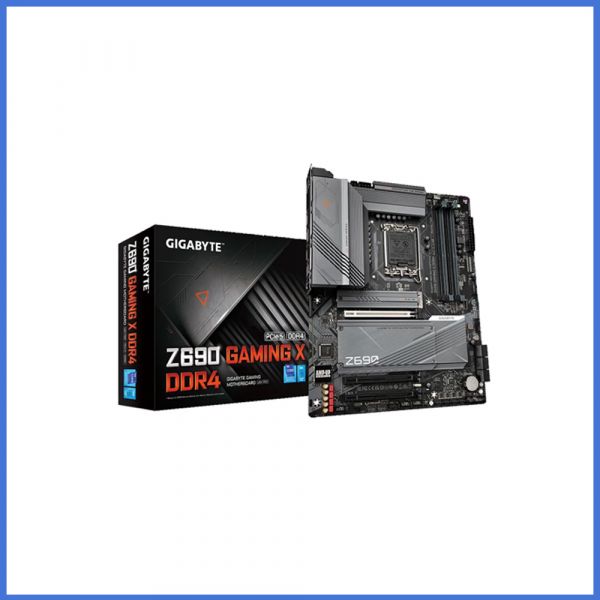

Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard

http://daffodil-bd.com/web/image/product.template/6442/image_1920?unique=a58e0fa
(0 review)


Brand: Gigabyte
Model: Z690 GAMING X DDR4
LGA1700 socket support 12th Gen Intel Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​
Direct 16+1+2 Digital VRM Design with 60A Power Stage
Fast 2.5GbE LAN with Bandwidth Management​

26,000.00 ৳ 26000.0 BDT 26,000.00 ৳ VAT Excluded

26,000.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    Mot-Z6904
    Category :
    Motherboard
    Share :
    Supported CPU

    LGA1700 Socket: Support For 12th Generation Intel Core I9 Processors/Intel Core I7 Processors/Intel Core I5 Processors
    L3 Cache Varies With CPU

    ChipsetIntel Z690 Express Chipset
    Supported MemorySupport For DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Memory Modules Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules
    BIOS1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    RAM TypeDDR4
    FromFactorATX Form Factor; 30.5cm X 24.4cm
    Internal I/O Ports1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 4 X M.2 Socket 3 Connectors 6 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 2 X Thunderbolt Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Reset Button 1 X Reset Jumper 1 X Q-Flash Plus Button 1 X Clear CMOS Jumper
    Maximum MemoryUp To 128 GB (32 GB Single DIMM Capacity)
    AudioRealtek ALC1220-VB CODEC * The Back Panel Line Out Jack Supports DSD Audio. High Definition Audio 2-Channel Analog Output Support For S/PDIF Out 7.1-Channel Digital Signals
    Expansion Slots
    PCI1 X PCI Express X16 Slot, Running At X16 (PCIEX16)
    * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot.
    (The PCIEX16 Slot Conforms To PCI Express 5.0 Standard.)
    2 X PCI Express X16 Slots, Running At X4 (PCIEX4_1, PCIEX4_2)
    (The PCIEX4 Slots Conform To PCI Express 3.0 Standard.)
    M.2 Socket4 X Ultra-Fast NVMe PCIe 4.0/3.0 X4 M.2 With Enlarged Thermal Guards
    HDMI1 X HDMI Port
    USBChipset: 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 2x2 Support 1 X USB Type-C Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header 2 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel 5 X USB 3.2 Gen 1 Ports (3 Ports
    Audio Jack1 X Front Panel Audio Header
    DisplayPort1 X DisplayPort
    BrandGigabyte



    Find Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard Best Price in Bangladesh. Find also other Motherboard on reasonable from our website. You will get Gigabyte Z690 home delivery in Dhaka city or pickup from our showroom.

    Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard Best Price in Bangladesh

    Basic Information

    Supported CPULGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
    L3 cache varies with CPU
    ChipsetIntel Z690 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorATX Form Factor; 30.5cm x 25.9cm
    AudioRealtek ALC1220-VB CODEC
    * The back panel line out jack supports DSD audio.
    High Definition Audio
    2-channel analog output
    Support for S/PDIF Out
    7.1-channel digital signals

    Expansion Slots

    PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
    2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
    (The PCIEX4 slots conform to PCI Express 3.0 standard.)
    M.2 Socket4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards

    Memory

    Type DDR4
    Slots4 x DIMM
    Supported MemorySupport for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum MemoryUp to 128 GB (32 GB single DIMM capacity)

    Graphics

    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

    Connector & Ports

    Display Port (s)1 x Display Port
    HDMI1 x DisplayPort
    USB (s)Chipset:
    1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
    1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Supported StorageCPU:
    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

    Intel Optane Memory Ready
    * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
    Audio1 x front panel audio header
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    4 x M.2 Socket 3 connectors
    6 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x reset button
    1 x reset jumper
    1 x Q-Flash Plus button
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    Warranty Information

    Manufacturing Warranty03 years warranty

    Others

    Special FeaturesSupport for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Bundled SoftwareNorton Internet Security (OEM version)
    Realtek Gaming LAN Bandwidth Control Utility

    Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard

    The Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard is featured with direct 16+1+2 Digital VRM Design with 60A Power Stage and Tantalum Polymer Capacitor, DDR4 XTREME MEMORY Design, Fins-Array III Heatsink, Direct-Touch Heatpipe II, NanoCarbon Baseplate, M.2 Thermal Guard III, 125dB ESS Sabre Audio, Intel WIFI 6E 802.11ax, AQUANTIA 10GbE LAN. Gigabyte Z690 is supported with LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors. Gigabyte Z690 comes with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. Advanced Thermal Solution with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II, and NanoCarbon Baseplate. Gigabyte Z690 has a Fast 2.5GbE LAN with Bandwidth Management. Gigabyte Z690 is equipped with AMP-UP Audio with ALC1220 and WIMA Audio Capacitors. It has 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. The SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, and Noise Detection. The Gigabyte Z690 GAMING X DDR4 comes with 3 years of warranty.
