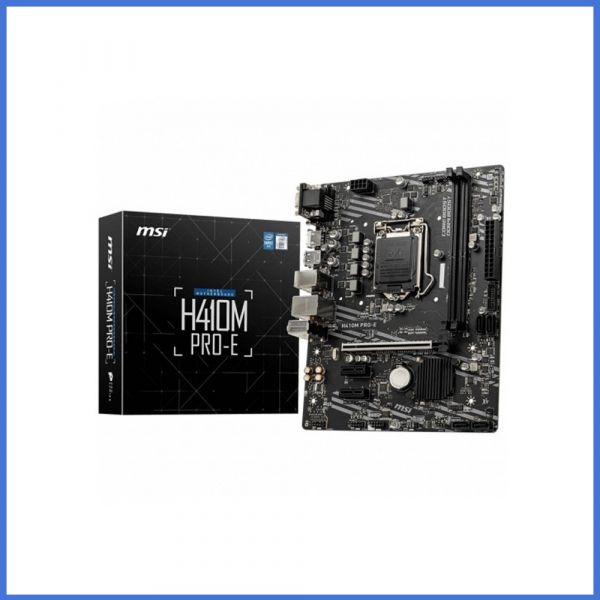

MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard

http://daffodil-bd.com/web/image/product.template/5498/image_1920?unique=a58e0fa
(0 review)


Brand: MSI
Model: MSI H410M PRO-E
Supports 10th Gen Intel Core and Pentium Gold/ Celeron Processors
PCI-E Steel Armor
2x DDR4 Memory Slots
Intel LAN, Audio Boost, DDR4 Boost

8,140.00 ৳ 8140.0 BDT 8,140.00 ৳ VAT Excluded

8,140.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    MOT004
    Category :
    Motherboard
    Share :
    More Information
    Supported CPU

    Supports 10th Gen Intel Core And Pentium Gold/ Celeron Processors For LGA 1200 Socket

    ChipsetIntel H410 Chipset
    Supported MemoryIntel Core I7/ I9: Supports Up To DDR4 2933 MHz Intel Core I5 And Below: Supports Up To DDR4 2666 MHz Supports Dual-Channel Mode Supports Intel Extreme Memory Profile (XMP)
    RAM TypeDDR4
    FromFactorMirco-ATX Form Factor 9.3 In. X 7.5 In. (23.6 Cm X 19.0 Cm)
    Internal I/O Ports1x 24-Pin ATX Main Power Connector 1x 8-Pin ATX 12V Power Connector 4x SATA 6Gb/S Connectors 1x USB 2.0 Connector (Supports Additional 2 USB 2.0 Ports) 1x USB 3.2 Gen1 5Gbps Connector (Supports Additional 2 USB 3.2 Gen1 5Gbps Ports) 1x 4-Pin CPU Fan Connector 1x 4-Pin System Fan Connector 1x Front Panel Audio Connector 2x System Panel Connectors 1x Serial Port Connector 1x Chassis Intrusion Connector 1x Clear CMOS Jumper 4x EZ Debug LED
    Maximum Memory64GB
    AudioRealtek ALC897 Codec 7.1-Channel High Definition Audio
    HDMI1x HDMI 1.4 Port (Resolution Of 4096x2160 @30Hz)
    LAN1x Realtek R1111H Gigabit LAN Controller
    Graphics

    1x VGA Port, Supports A Maximum Resolution Of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
    1x HDMI™ 1.4 Port, Supports A Maximum Resolution Of 4096x2160 @30Hz
    1x DVI-D Port, Supports A Maximum Resolution Of 1920x1200 @60Hz

    USBIntel H410 Chipset 4x USB 3.2 Gen 1 5Gbps Ports (2 Type-A Ports On The Back Panel, 2 Ports Available Through The Internal USB 3.2 Gen 1 5Gbps Connector) 6x USB 2.0 Ports (4 Type-A Ports On The Back Panel, 2 Ports Available Through The Internal USB 2.0 Con
    Wi-FiNo
    Supported StorageIntel H410 Chipset 4x SATA 6Gb/S Ports
    BrandMSI


    MSI H410M PRO-E Intel 10th Micro-ATX Motherboard Best Price in Bangladesh

    Find MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard Best Price in Bangladesh. Find also other Motherboard on reasonable from our website.You will get home delivery in Dhaka city or pickup from our showroom.

    Basic Information

    Supported CPUSupports 10th Gen Intel Core and Pentium Gold/ Celeron processors for LGA 1200 socket
    ChipsetIntel H410 Chipset
    Form Factor Mirco-ATX Form Factor
    9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

    Expansion Slots

    PCI1x PCIe 3.0 x16 slot (From CPU)
    1x PCIe 3.0 x1 slot (From PCH)

    Memory

    TypeNon-ECC, Un-Buffered Memory
    Slots2x DDR4 memory slots
    Supported Memory Intel Core i7/ i9: Supports up to DDR4 2933 MHz
    Intel Core i5 and below: Supports up to DDR4 2666 MHz
    Supports Dual-Channel mode
    Supports Intel Extreme Memory Profile (XMP)
    Maximum Memory64GB

    Graphics

    Graphics1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
    1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
    1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz

    Connector & Ports

    HDMI1x HDMI 1.4 port (Resolution of 4096x2160 @30Hz)
    DVI-D (s)1x DVI-D port (Resolution of 1920x1200 @60Hz)
    USB (s)Intel H410 Chipset
    4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
    6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
    LAN Port (s)1x Realtek R1111H Gigabit LAN controller
    Supported StorageIntel H410 Chipset
    4x SATA 6Gb/s ports
    AudioRealtek ALC897 Codec
    7.1-Channel High Definition Audio
    Internal I/O Ports1x 24-pin ATX main power connector
    1x 8-pin ATX 12V power connector
    4x SATA 6Gb/s connectors
    1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
    1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
    1x 4-pin CPU fan connector
    1x 4-pin system fan connector
    1x Front panel audio connector
    2x System panel connectors
    1x Serial port connector
    1x Chassis Intrusion connector
    1x Clear CMOS jumper
    4x EZ Debug LED
    TPM (Trusted Platform Module )

    1 x TPM module connector

    Warranty Information

    Manufacturing Warranty03 Years Warranty

    MSI H410M PRO-E Intel 10th Micro-ATX Motherboard

    MSI H410M PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, MSI H410M PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating a perfect condition to support multi-core CPU running at full speed.
