Price:
20,620.00 ৳

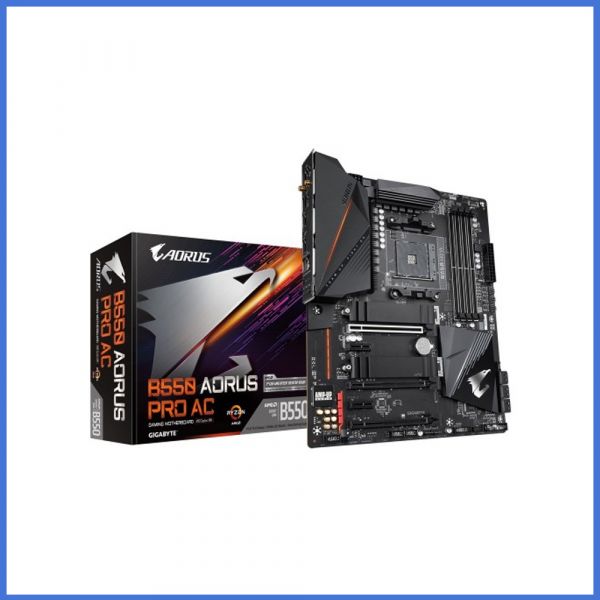

Gigabyte Aorus B550 Pro AC AMD 3rd Gen Motherboard
Brand: Gigabyte
Model: Gigabyte Aorus B550 Pro AC
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Blazing Fast 2.5GbE LAN
Advanced Thermal Design
AMP-UP Audio with ALC1220-VB
SKU :
MOT005Category :
MotherboardMore Information
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
|---|---|
| Chipset | AMD B550 |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support For DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz Memory Modules New Generation AMD Ryzen™ With Radeon™ Graphics Processors: Support For DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz Memory Modules Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| RAM Type | DDR4 |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 2 X M.2 Socket 3 Connectors 6 X SATA 6Gb/S Connectors 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 4 X System Fan Headers 2 X System Fan/Water Cooling Pump Headers 1 X CPU Cooler LED Strip/RGB LED Strip Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 2 X Temperature Sensor Headers 1 X Clear CMOS Jumper 1 X Thunderbolt Header |
| Maximum Memory | Support Up To 128GB |
| Max Shared Memory | 16 GB |
| Audio | Realtek ALC1220-VB Codec High Definition Audio 2/4/5.1/7.1-Channel Support For S/PDIF Out |
| HDMI | 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz |
| LAN | Realtek 2.5GbE LAN Chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication Module: Intel Wi-Fi 3168 WIFI 802.11a/B/G/N/Ac, Supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support For 11ac Wireless Standard And Up To 433 Mbps Data Rate |
| Graphics | Integrated In The New Generation AMD Ryzen With Radeon Graphics Processors: |
| USB | CPU: 3 X USB 3.2 Gen 1 Ports On The Back Panel 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel Chipset: 1 X USB Type-C™ Port On The Back Panel, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel 2 X USB 3.2 Gen 1 Ports |
| Wi-Fi | Yes |
| Brand | Gigabyte |
Gigabyte Aorus B550 Pro AC AMD 3rd Gen Motherboard Best Price in Bangladesh
Find Gigabyte Aorus B550 Pro AC AMD 3rd Gen Wi-Fi Motherboard Best Price in Bangladesh. Find also other Motherboard on reasonable from our website. You will get home delivery in Dhaka city or pickup from our showroom.
Basic Information
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD B550 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Expansion Slots
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 3.0 x2 mode |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Support PCIe 3.0 x4/x2 SSDs |
Memory
| Type | Dual-Channel Architecture |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | support up to 128GB |
Graphics
| Graphics | Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Max Shared Memory | 16GB |
Connector & Ports
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| USB (s) | CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)l |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module: Intel Wi-Fi 3168 WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Support PCIe 3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| Audio | Realtek ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x temperature sensor headers 1 x Clear CMOS jumper 1 x Thunderbolt header |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
Warranty Information
| Manufacturing Warranty | 03 Years Warranty |
Others
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software | Support for Windows 10 64-bit |
Gigabyte Aorus B550 Pro AC AMD 3rd Gen Motherboard
In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser-sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem. To fully support the latest 3rd Gen AMD Ryzen processors, Gigabyte Aorus B550 motherboards are equipped with the ultimate power solution which is truly direct, digital and has multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiasts. No Compromise and never stop striving to achieve higher. GIGABYTE realized that customers won't stop chasing better computing performance. We take care of it and implement products. Protective and optimized memory traces enhance the performance. Faster reading and writing are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components makes the B550 motherboards easier to upgrade. Unthrottled performance is guaranteed by the advanced thermal solution which includes Enlarged Heatsinks, High-Quality Thermal Conductivity Pads, and Thermal Guards. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts, overclockers, and professional gamers. A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next-generation network, storage, and WIFI connectivity to keep you up to speed. For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high-quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive Gigabyte Aorus B550 motherboard AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles. The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive Gigabyte Aorus B550 motherboard AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles. Gigabyte Aorus B550 motherboard feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers. B550 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish. GIGABYTE is reputable for its product durability and high standard of the manufactured process. Needless to say, we use the best, high-quality components on Gigabyte Aorus B550 motherboard and reinforce each part of the components to be solid and durable. Good software goes hand in hand with perfect hardware. Gigabyte Aorus B550 motherboards bundled several useful and intuitive software to help users to control every aspect of the motherboard. Gigabyte Aorus B550 motherboard has a 03 year warranty.
