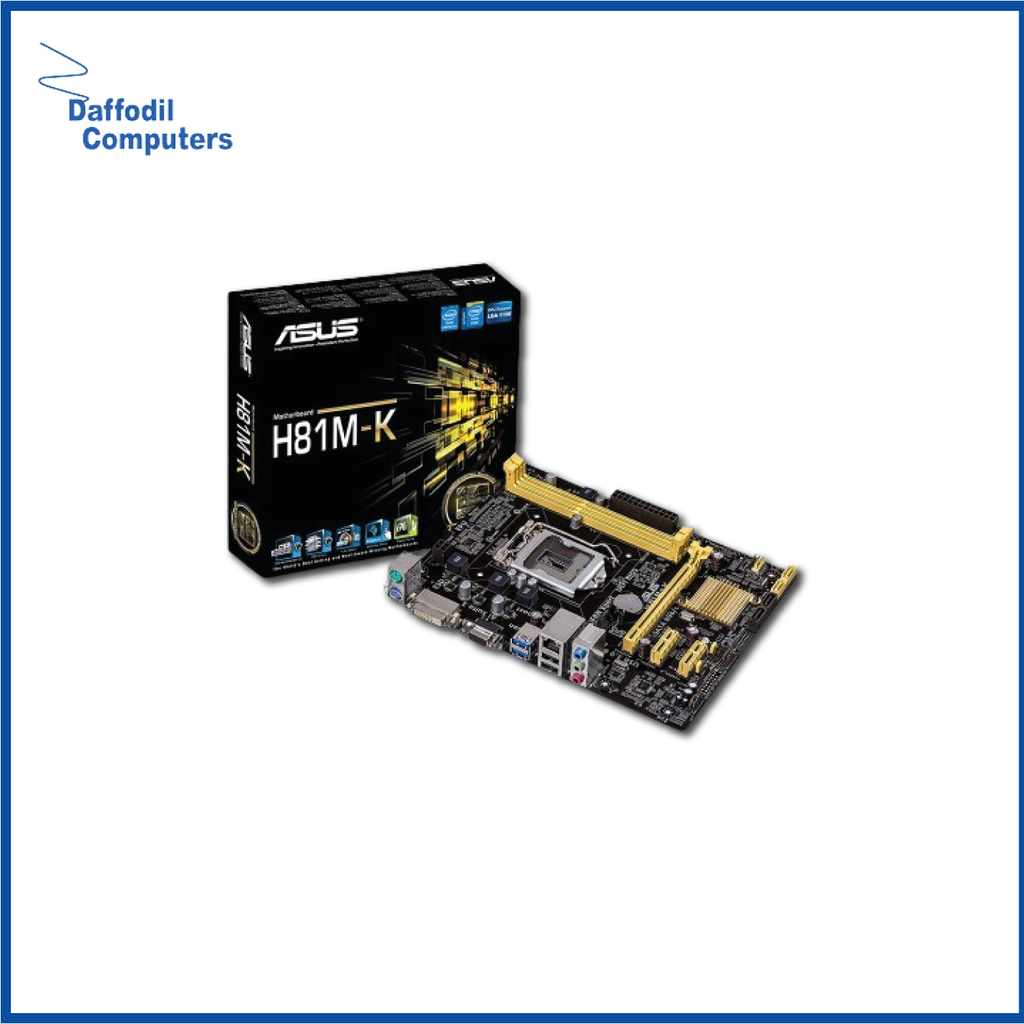

Asus Mother Board Intel H81 M Chipset

http://www.daffodil-bd.com/web/image/product.template/13953/image_1920?unique=8c2142f
(0 review)

Key Features
Model: H81M-K
Intel Socket 1150 for 4th Generation Core i7/i5/i3/Pentium/Celeron Processors
2 x DIMM, Max. 16GB, DDR3 Non-ECC, Un-buffered Memory
New UEFI BIOS & USB 3.0 Boost (UASP Support)
AI Suite 3-One-stop access to innovative ASUS features

7,160.00 ৳ 7160.0 BDT 7,160.00 ৳ VAT Excluded

7,160.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    MOT00579
    Category :
    Motherboard
    Share :

    Specification

    Basic Information
    Supported CPUIntel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
    Supports Intel 22 nm CPU
    Supports Intel Turbo Boost Technology 2.0
    ChipsetIntel H81
    BIOS64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
    Form FactoruATX Form Factor
    8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
    AudioRealtek ALC887/897 8-Channel High Definition Audio CODEC
    - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Expansion Slots
    PCI1 x PCIe x16
    2 x PCIe 2.0 x1
    Memory
    TypeDDR3
    Slots2 x DIMM
    Supported Memory1600/1333/1066 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    Maximum MemoryMax. 16GB
    Graphics
    GraphicsIntegrated Graphics Processor
    Multi-VGA output support : DVI/RGB ports
    - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
    Max Shared Memory1024 MB
    Connector & Ports
    D-Sub (s)1 x D-Sub
    DVI-D (s)1 x DVI
    USB (s)Intel H81 chipset :
    2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
    Intel H81 chipset :
    6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
    LAN Port (s)Realtek 8111G, 1 x Gigabit LAN Controller(s)
    Supported StorageIntel H81 chipset :
    2 x SATA 6Gb/s port(s), yellow,
    2 x SATA 3Gb/s port(s), dark brown,
    Supports Intel Rapid Start Technology, Intel Smart Connect Technology
    Audio3 x Audio jack(s)
    Internal I/O Ports1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (1 x 4 -pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    2 x SATA 6Gb/s connector(s)
    2 x SATA 3Gb/s connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Internal speaker connector(s)
    1 x Clear CMOS jumper(s)
    Others
    Special FeaturesASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - GPU Boost
    - AI Suite 3
    - Ai Charger
    - Anti-Surge
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - Network iControl
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    ASUS Q-Design :
    - ASUS Q-Slot
    Warranty Information
    Manufacturing Warranty3 Years

    Description

    Asus H81M-K 4th Gen Motherboard

    The Asus H81M-K 4th Gen Motherboard comes with the Intel H81 chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. This motherboard supports Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory, and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory, and 16 PCI Express lanes. It natively supports up to two USB 3.0 ports for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel® H81 chipset also supports iGPU functionality, letting users enjoy the latest Intel integrated graphics performance. ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction. The Asus H81M-K comes with 3 years of warranty.
