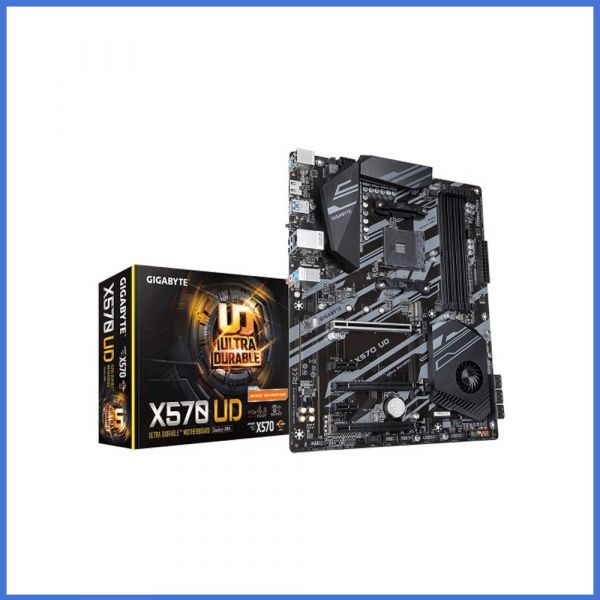

Gigabyte X570 UD DDR4 AM4 Socket Motherboard

http://www.daffodil-bd.com/web/image/product.template/5505/image_1920?unique=edead4b
(0 review)


Brand: Gigabyte
Model: Gigabyte X570 UD
Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Chipset AMD X570
Dual Channel Non-ECC Unbuffered
Advanced Thermal Design

17,790.00 ৳ 17790.0 BDT 17,790.00 ৳ VAT Excluded

17,790.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    MOT006
    Category :
    Motherboard
    Share :


    Supported CPU

    Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors

    ChipsetAMD X570
    Supported Memory3rd Generation AMD Ryzen™ Processors: Support For DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Memory Modules 2nd Generation AMD Ryzen™ Processors/2nd Generation AMD Ryzen™ With Radeon™ Vega Graphics Processors/AMD Ryzen™ With Radeon™ Vega Graphics Processors: Support For DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz Memory Modules Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules* * ECC Mode Supported By 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ And Only PRO Sku Of 2nd Gen AMD Ryzen™ With Radeon™ Vega Graphics Processors/ AMD Ryzen™ With Radeon™ Vega Graphics Processors. Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules
    BIOS1 X 128 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    RAM TypeDDR4
    FromFactorATX Form Factor; 30.5cm X 24.4cm
    Internal I/O Ports1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 2 X System Fan Headers 1 X RGB LED Strip Header 6 X SATA 6Gb/S Connectors 1 X M.2 Socket 3 Connector 1 X Front Panel Header 1 X Front Panel Audio Header 2 X USB 3.2 Gen 1 Headers 2 X USB 2.0/1.1 Headers 1 X Trusted Platform Module (TPM) Header (2x6 Pin, For The GC-TPM2.0_S Module Only) 1 X Clear CMOS Jumper
    Maximum Memory128 GB
    Max Shared Memory16 GB
    AudioRealtek ALC887 Codec High Definition Audio 2/4/5.1-Channel
    HDMI1 X HDMI Port
    LANRealtek GbE LAN Chip (10/100/1000 Mbit) 1 X RJ-45 Port
    Graphics

    Integrated Graphics Processor:
    1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
    Support For HDMI 2.0 Version, HDCP 2.2, And HDR.
    Note: For 2nd Generation AMD Ryzen With Radeon Vega Graphics Processors/AMD Ryzen With Radeon Vega Graphics Processors Only.
    Support For AMD Quad-GPU CrossFire And 2-Way AMD CrossFire Technologies
    Note: For 3rd Generation AMD Ryzen Processors/2nd Generation AMD Ryzen Processors Only.

    USBIntegrated In The CPU: 4 X USB 3.2 Gen 1 Ports On The Back Panel Chipset: 4 X USB 3.2 Gen 1 Ports Available Through The Internal USB Headers 6 X USB 2.0/1.1 Ports (2 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers)
    BrandGigabyte



    Basic Information

    Supported CPUSupports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
    ChipsetAMD B550
    Form Factor ATX Form Factor; 30.5cm x 24.4cm
    BIOS1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Expansion Slots

    PCI3rd Generation AMD Ryzen processors:
    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    · 2nd Generation AMD Ryzen processors:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    · 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1)
    2 x PCI Express x16 slots, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4)
    For 3rd Generation AMD Ryzen processors only.
    2 x PCI Express x1 slots, supporting PCIe 4.0/3.0
    For 3rd Generation AMD Ryzen processors only.
    For 3rd Generation AMD Ryzen processors only.
    3 x PCI Express x1 slots, supporting PCIe 4.0/3.0
    For 3rd Generation AMD Ryzen processors only.
    M.2 Socket3rd Generation AMD Ryzen™ processors:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

    Memory

    Type

    Dual channel memory architecture

    Slots4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Supported Memory 3rd Generation AMD Ryzen™ processors:
    Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
    * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memorysupport up to 128GB

    Graphics

    GraphicsIntegrated Graphics Processor:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    Support for HDMI 2.0 version, HDCP 2.2, and HDR.
    Note: For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors only.
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
    Note: For 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors only.
    Max Shared Memory16GB

    Connector & Ports

    HDMI1 x HDMI port
    USB (s)Integrated in the CPU:
    4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    4 x USB 3.2 Gen 1 ports available through the internal USB headers
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Realtek GbE LAN chip (10/100/1000 Mbit)
    1 x RJ-45 port
    Supported StorageIntegrated in the CPU:
    · 3rd Generation AMD Ryzen™ processors:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
    · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
    Integrated in the Chipset:
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, and RAID 10
    AudioRealtek ALC887 codec
    High Definition Audio
    2/4/5.1-channel
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    2 x system fan headers
    1 x RGB LED strip header
    6 x SATA 6Gb/s connectors
    1 x M.2 Socket 3 connector
    1 x front panel header
    1 x front panel audio header
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )

    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

    Warranty Information

    Manufacturing Warranty03 Years Warranty

    Others

    Special FeaturesSupport for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    Smart Keyboard
    Smart Survey
    System Information Viewer
    USB Blocker
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install

    Gigabyte X570 UD DDR4 AM4 Socket Motherboard

    GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. Motherboards offer a rich list of features such as support for PCIe 4.0 interfaces on select boards, refined audio,and high speed of Ethernet , to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the motherboards perfect for users looking to build the best AMD platform gaming system. X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system. GIGABYTE X570 motherboards use a 10*+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest AMD Ryzen™ 3000-series CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. GIGABYTE X570 motherboards push the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connector and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts. A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. GIGABYTE motherboards provide all next generation network storage to keep you up to speed. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (renamed to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
