Price:
4,825.00 ৳

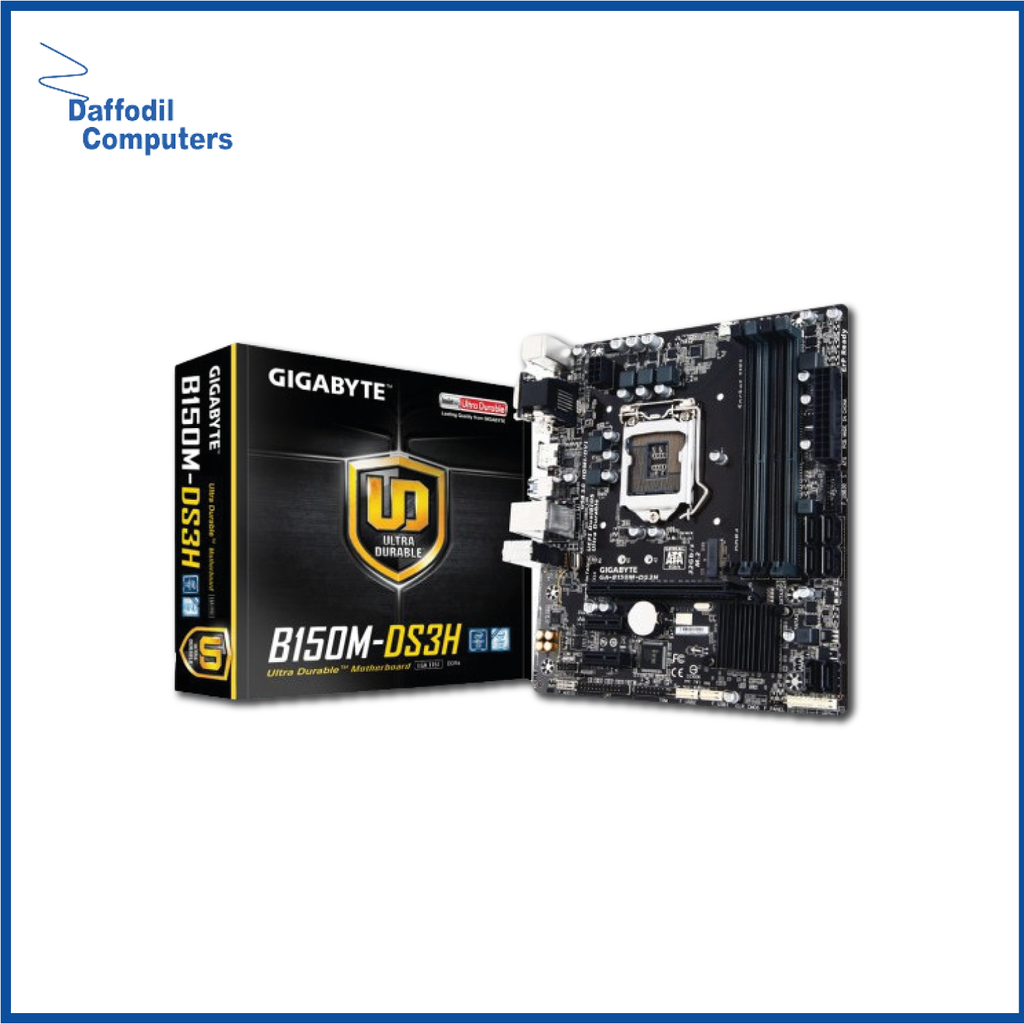

Gigabyte Mother Board Intel Ga-B150m/250
Key Features
Supports 7th / 6th Generation Intel® Core™ Processors
Dual Channel DDR4, 4 DIMMs
2-Way Graphics with Premium PCIe Lane
PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
SATA Express Connector for up to 16Gb/s Data Transfer
8-channel HD Audio with High-Quality Audio Capacitors
Audio Noise Guard with LED Trace Path Lighting
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
APP Center Including EasyTune™ and Cloud Station™ Utilities
GIGABYTE UEFI DualBIOS™ Technology
Support Intel® Small Business Advantage
Specification
Motherboard | |
| Chipset | Intel® B150 Express Chipset |
| Supported Processors | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
| Max Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Onboard Video | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 512 MB |
| Onboard Audio | Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Onboard LAN | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Warranty | 2 Years |
Description
- Supports 6th Generation Intel® Core™ Processor
- Dual Channel DDR4, 4 DIMMs
- 2-Way Graphics with Premium PCIe Lane
- PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- SATA Express Connector for up to 16Gb/s Data Transfer
- 8-channel HD Audio with High-Quality Audio Capacitors
- Audio Noise Guard with LED Trace Path Lighting
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities
- GIGABYTE UEFI DualBIOSâ„¢ Technology
- Support Intel® Small Business Advantage
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
