Price:
30,500.00 ৳

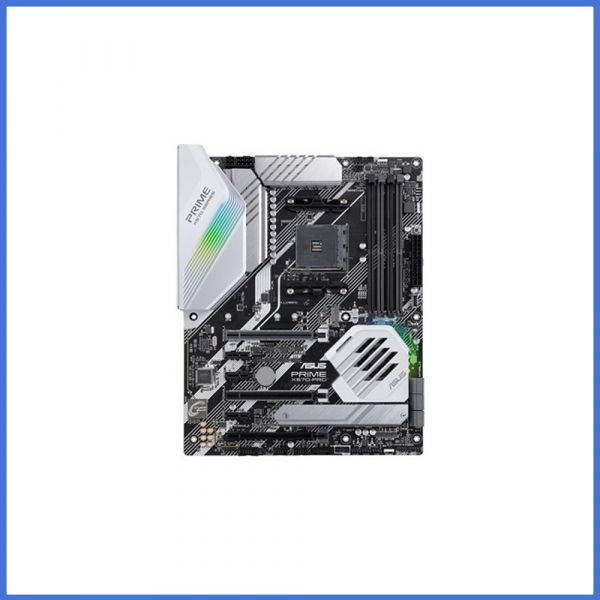

Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard
Brand: ASUS
Model: Asus Prime X570-PRO CSM
Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
5-Way Optimization
Enhanced Power Solution
Industry-leading cooling options
SKU :
MOT009Category :
Processor
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors |
|---|---|
| Chipset | AMD X570 |
| Supported Memory | 3rd Gen AMD Ryzen Processors 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz 2nd Gen AMD Ryzen Processors 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un- 2nd And 1st Gen AMD Ryzen With Radeon Vega Graphics Processors 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-Language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified Log, F9 Search, F12 PrintScreen, And ASUS DRAM SPD (Serial Presence Detect) Memory Information |
| RAM Type | DDR4 |
| FromFactor | ATX Form Factor 12.0 Inch X 9.6 Inch ( 30.5 Cm X 24.4 Cm ) |
| Internal I/O Ports | 2 X Aura RGB Strip Headers 1 X Addressable Gen 2 Header(S) 2 X USB 2.0 Connector(S) Support(S) Additional 4 USB 2.0 Port(S) 2 X M.2 Socket 3 With M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA Mode & PCIE Mode) 1 X COM Port(S) Connector(S) 6 X SATA 6Gb/S Connector(S) 1 X CPU Fan Connector(S) (1 X 4 -Pin) 1 X CPU OPT Fan Connector(S) (1 X 4 -Pin) 3 X Chassis Fan Connector(S) (3 X 4 -Pin) 1 X PCH_FAN (1 X 4 -Pin) 1 X AIO_PUMP Connector (1 X 4 -Pin) 1 X 24-Pin EATX Power Connector(S) 1 X 8-Pin ATX 12V Power Connector(S) 1 X 4-Pin ATX 12V Power Connector(S) 1 X Front Panel Audio Connector(S) (AAFP) 1 X System Panel(S) 1 X Power-On Button(S) 1 X Clear CMOS Jumper(S) 1 X Node Connector(S) 1 X Water Pump Header (4-Pin) 1 X T_Sensor Connector 1 X USB 3.2 Gen 2 (Up To 10Gbps) Connector 1 X USB 3.2 Gen 1 (Up To 5Gbps) Connector Support Additional 2 USB Ports |
| Maximum Memory | Max. 128GB, DDR4 |
| Max Shared Memory | 3rd And 2nd Gen AMD Ryzen Processors Supports NVIDIA® 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology 2nd And 1st Gen AMD Ryzen With Radeon Vega Graphics Processors Supports AMD 2-Way CrossFireX Technology |
| Audio | Realtek S1220A 8-Channel High Definition Audio CODEC Featuring Crystal Sound 3 - Impedance Sense For Front And Rear Headphone Outputs - Internal Audio Amplifier To Enhance The Highest Quality Sound For Headphone And Speakers - Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - High Quality 120 DB SNR Stereo Playback Output And 113 DB SNR Recording Input (Line-In) - Front Panel Audio Connector (AAFP) - Supports Up To 32-Bit/192kHz Playback * Audio Feature : - Optical S/PDIF Out Port(S) At Back Panel - Audio Shielding: Ensures Precision Analog/Digital Separation And Greatly Reduced Multi-Lateral Interference - Dedicated Audio PCB Layers: Separate Layers For Left And Right Channels To Guard The Quality Of The Sensitive Audio Signals - Premium Japanese-Made Audio Capacitors: Provide Warm, Natural And Immersive Sound With Exceptional Clarity And Fidelity - EMI Protection Cover To Prevent Electrical Noise To Affect The Amplifier Quality |
| Expansion Slots | 4 X DIMM |
| HDMI | HDMI 2.0b With Maximum Resolution Of 4096 X 2160 @ 60 Hz |
| LAN | Intel I211-AT ASUS LAN Guard |
| Graphics | Integrated Graphics In The 2nd And 1st Gen AMD Ryzen With Radeon Vega Graphics Processors |
| USB | 3rd And 2nd Gen AMD Ryzen/2nd And 1st Gen AMD Ryzen With Radeon Vega Graphics Processors : 4 X USB 3.2 Gen 1 Port(S) (4 At Back Panel, Blue, Type-A) AMD X570 Chipset : 1 X USB 3.2 Gen 2 Front Panel Connector Port(S) AMD X570 Chipset : 4 X USB 3.2 Gen 2 Po |
| Wi-Fi | NO |
| DisplayPort | DisplayPort 1.2 With Max. Resolution 4096 X 2160 @ 60 Hz |
| Supported Storage | 3rd Gen AMD Ryzen Processors : 1 X M.2_1 Socket 3, With M Key, Type 2242/2260/2280/22110(PCI-E 4.0 X4 And SATA Modes) Storage Devices Support 2nd Gen AMD Ryzen/2nd And 1st Gen AMD Ryzen With Radeon Vega Graphics Processors : 1 X M.2_1 Socket 3, With M Key |
| Brand | Asus |
Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard Best Price in Bangladesh
Find Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard Best Price in Bangladesh. Find also other Motherboard on reasonable from our website. you will get home delivery in Dhaka city or pickup from our showroom.
Basic Information
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors |
| Chipset | AMD X570 |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
Expansion Slots
| PCI | 3rd Gen AMD Ryzen Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1 |
| M.2 Socket | 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support |
Memory
| Type | Dual Channel Memory Architecture |
| Slots | 4 x DIMM |
| Supported Memory | 3rd Gen AMD Ryzen Processors 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz 2nd Gen AMD Ryzen Processors 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un- 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Maximum Memory | Max. 128GB, DDR4 |
Graphics
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI 2.0b with a maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Max Shared Memory | 3rd and 2nd Gen AMD Ryzen Processors Supports NVIDIA® 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Supports AMD 2-Way CrossFireX Technology |
Connector & Ports
| HDMI | HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz |
| Display Ports (s) | DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| USB (s) | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
| LAN Port (s) | Intel I211-AT ASUS LAN Guard |
| Supported Storage | 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| Audio | Realtek S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Front panel audio connector (AAFP) - Supports up to 32-Bit/192kHz playback * Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - EMI protection cover to prevent electrical noise to affect the amplifier quality |
| Internal I/O Ports | 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x PCH_FAN (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x Water Pump header (4-pin) 1 x T_Sensor Connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header |
Warranty Information
| Manufacturing Warranty | 03 Years Warranty |
Others
| Special Features | 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App DIGI+ VRM: Digital power design with Dr. MOS EPU Guidance TPU Insight Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications. ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM - Digital power design with Dr. MOS - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem： - Improved DDR4 Stability AURA : - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - Armoury Crate - Pre-mounted I/O Shield ASUS Quiet Thermal Solution : - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |
Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard
Dressed in professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen processors to more productive use. Asus Prime X570 motherboard, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance. Asus Prime X570 motherboard hosted the latest Ryzen processor with an increased number of cores and bandwidth, the Asus Prime X570 motherboard series is ready for action with stable power, intuitive cooling, and flexible transfer options. Asus Prime X570 motherboard provides all the fundamentals to increase your everyday productivity. Asus Prime X570 motherboard 3rd Gen AMD Ryzen processors boast more cores and bandwidth. Asus Prime X570 motherboard demanding more power than typical desktop CPUs. Prime X570-Pro is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance. Asus Prime X570 motherboard augments the motherboard's link to the PSU with 8+4 pin connectors that pass 12V power directly to the processors. Based on our ProCool design, these jacks use solid pins that can handle more current than hollow-pin connectors. The Prime X570 series feature software and firmware controls that make performance accessible to anyone. Prime X570 series also include options allowing you to personalize your build, and help you to tune your rig to perform the way you want it. Asus Prime X570 motherboard has One-click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. Asus Prime X570 motherboard dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig. Asus Prime X570 motherboard has UEFI BIOS is an early waypoint on any PC-building journey, and Prime X570-Pro offers one of the best in the business. Designed for easy setup, EZ Mode presents all the vital settings and stats on one single page. With guided wizards, drag-and-drop simplicity, and one-click convenience to apply important settings, your rig will be up and running in no time. When you're ready to take a deeper dive into the configuration of your rig, Advanced Mode grants total control. Each section is intuitively organized, and a built-in search feature makes it easy to find the option you need. Tweak cooling parameters, save profiles, apply overclocks, and unleash the full potential of the latest Ryzen processor. Asus Prime X570 motherboard is Armory Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. Asus Prime X570 motherboard software system is also provides control of settings for ASUS products, including keyboard and mouse preferences. Armory Crate even features dedicated product registration and highlights to help you stay in touch with the ASUS community. A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware. Prime X570-Pro's Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. Asus Prime X570 motherboard new headers also offer backward-compatibility with existing Aura RGB gear. Asus Prime X570 motherboard has a 03 year warranty.
