Price:
13,570.00 ৳
Specification
Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor | mATX 200mmx236.16mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |
Expansion Slots | |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
Memory | |
| Type | DDR4 |
| Slots | 2 |
| Supported Memory | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | 64GB |
Graphics | |
| Graphics | 1x HDMI Support HDMI 1.4 with HDR, the maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
Connector & Ports | |
| HDMI | 1x HDMI |
| VGA (s) | 1x VGA |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek RTL8111H Gigabit LAN |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 2x USB 2.0 ports 1x USB 3.2 Gen1 Type A ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
Others | |
| Special Features | 4x EZ Debug LED |
Warranty Information | |
| Manufacturing Warranty | 3 years |
Description

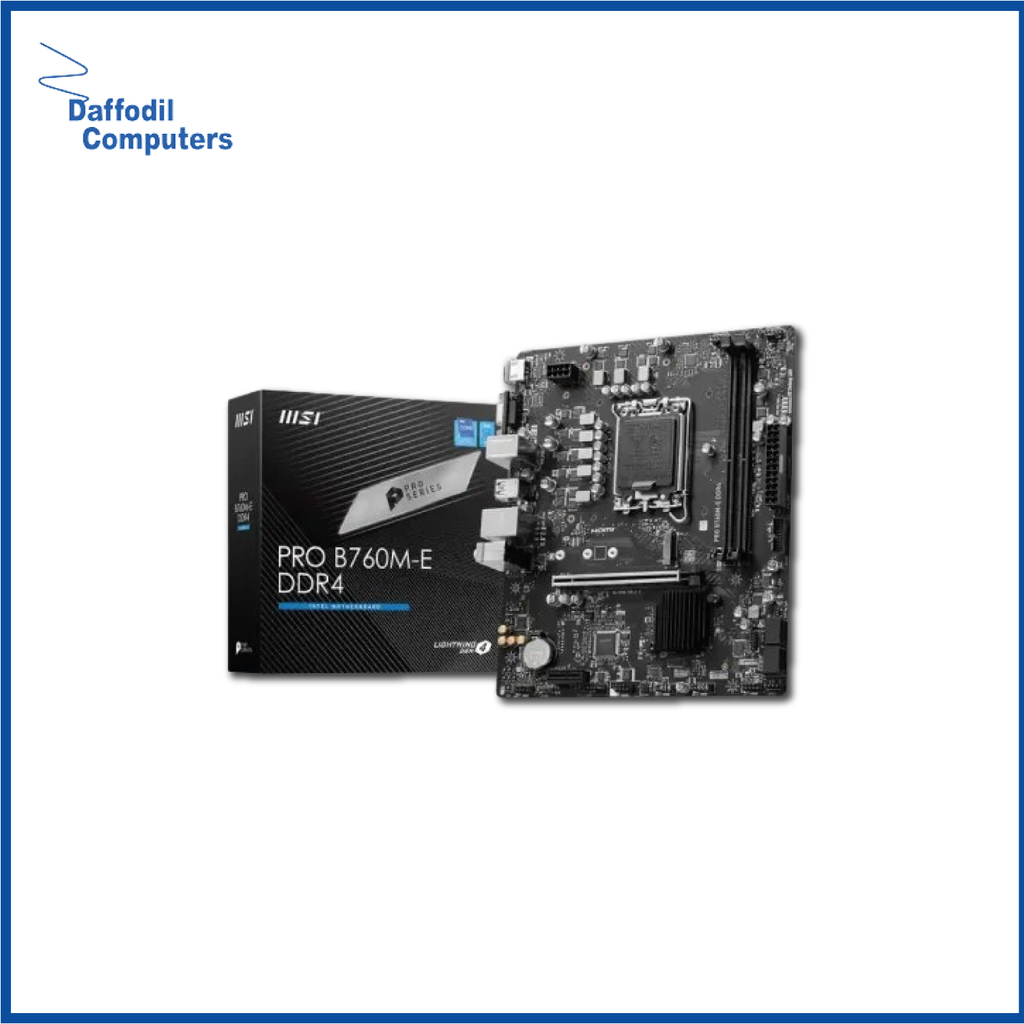

MSI PRO B760M-E DDR4 mATX Motherboard
The MSI PRO B760M-E is a micro-ATX motherboard with an LGA 1700 socket that supports 14th, 13th, and 12th-generation Intel Processors. For quicker performance, it supports DDR4 memory and has dual-channel DDR4 4800+MHz (OC) capabilities. Core Boost, a premium layout, and a digital power architecture enable the motherboard to accommodate more cores and give higher performance. Memory Boost, an innovative technology that produces pure data signals for the highest performance, stability, and compatibility, is also incorporated. The MSI PRO B760M-E has PCIe 4.0 and Lightning Gen4 x4 M.2 for a lightning-fast experience. This 14th Gen Motherboard enables faster data transmission rates and enhanced performance for gaming and other high-performance applications. The motherboard has AUDIO BOOST, which delivers studio-quality sound for the most immersive gaming experience. Steel Armor is also incorporated to prevent VGA cards from bending and EMI, resulting in improved performance, stability, and strength.
