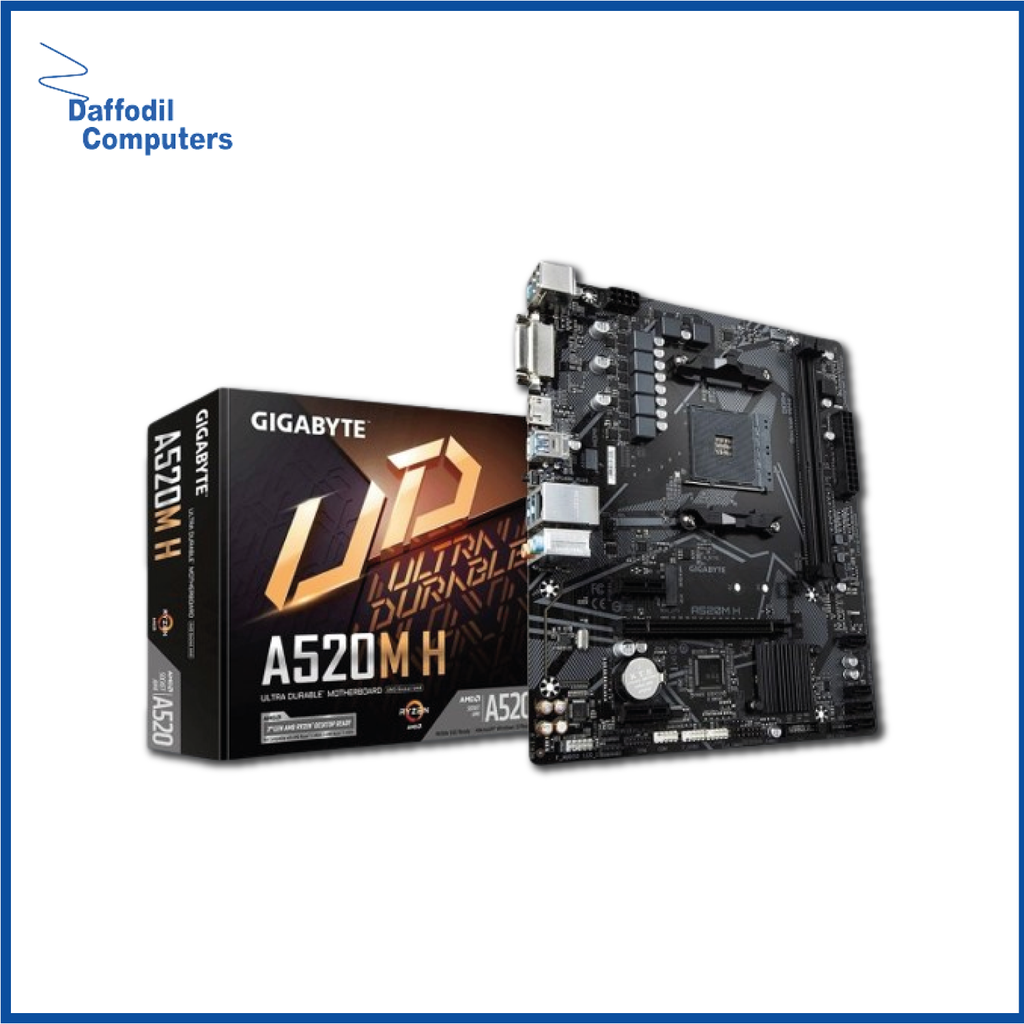

Gigabyte Amd Chipset A520m H Am4 Micro Atx Motherboard

http://www.dolphin.com.bd/web/image/product.template/13979/image_1920?unique=81360d6
(0 review)

Key Features
Model: A520M H
Ryzen 5000 Series/ 3rd Gen & 3rd Gen with Radeon Graphics Processors
GIGABYTE Exclusive 8118 Gaming LAN
5+3 Phases Pure Digital VRM
Ultra-Fast NVMe PCIe Slots

9,752.00 ৳ 9752.0 BDT 9,752.00 ৳ VAT Excluded

9,752.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us
    SKU :
    MOT00947
    Category :
    Motherboard
    Tags :
    Share :
    Terms and Conditions

    Specification

    Basic Information
    Supported CPUAMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
    ChipsetAMD A520
    BIOS1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 24.4cm x 20.5cm
    Expansion Slots
    PCICPU:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    Chipset:
    2 x PCI Express x1 slots, supporting PCIe 3.0
    M.2 SocketCPU:
    1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support)
    Memory
    TypeDDR4
    Slots2 x DIMM slots
    Supported MemorySupport for 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3rd Gen AMD Ryzen Processors:
    Support for 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3rd Gen AMD Ryzen with Radeon Graphics processors:
    Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
    Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum MemoryUp to 64GB (32 GB single DIMM capacity)
    Graphics
    GraphicsIntegrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
    1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz
    1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
    Max Shared Memory16 GB
    Connector & Ports
    HDMI1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
    DVI-D (s)1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz
    USB (s)CPU:
    4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    2 x USB 3.2 Gen 1 ports available through the internal USB header
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Realtek® GbE LAN chip (1 Gbit/ 100 Mbit)
    Supported StorageCPU:
    1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support)
    Chipset:
    4 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, and RAID 10
    AudioRealtek Audio CODEC
    High Definition Audio
    2/ 4/ 5.1/ 7.1-channel
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x serial port header
    1 x chassis intrusion header
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    Others
    Special FeaturesSupport for APP Center
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Warranty Information
    Manufacturing Warranty03 Years

    Description

    GIGABYTE A520M H AM4 Micro ATX Motherboard

    GIGABYTE UD series motherboards use a 4+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system potential.

    PERFORMANCE

    Realtek 8118 LAN is a high-performance high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience. HDMI 2.1, which is backward compatible with HDMI 2.0/ 1.4 and offers 48 Gb/s of bandwidth twice times more than the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR, and HDCP 2.3 support, to offer the best visual experience for viewers. GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

    High-End Audio Capacitors

    GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high-resolution and high-fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board-sensitive analog audio components from potential noise pollution at the PCB level.

    COOLING

    With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature all of it can be customized to your liking.

    LIGHTING

    With A520 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature-filled with colors and patterns, RGB Fusion 2.0 is now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable users can experience even more patterns, styles, and illuminations. With A520 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come. With an integrated intuitive user interface, the RGB Fusion 2.0 provides you with a better solution for customizing the lighting effects across all supported devices. From motherboards, and graphics cards to peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

    ULTRA-DURABLE

    With GIGABYTE Q-Flash Plus, you do not need to install the CPU, memory, and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button, and you are good to go! A520 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading. Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
