Gigabyte Mother Board Intel Chipset H470 M H Lga-1200

https://www.daffodil-bd.com/web/image/product.template/13981/image_1920?unique=f978f07
(0 review)

Key Features
Model: H470M H
Supported CPU: 11th/10th Gen Intel Core Processors (LGA1200)
Supported RAM: 2 x DIMM, Max. 64GB, DDR4
Graphics Output: 1 x D-Sub, 1 x HDMI
Features: GbE LAN with Bandwidth Management

9,222.00 ৳ 9222.0 BDT 9,222.00 ৳ VAT Excluded

9,222.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    MOT00953
    Category :
    Motherboard
    Share :

    Specification

    Basic Information
    Supported CPULGA1200 package:
    11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
    10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors
    L3 cache varies with CPU
    ChipsetIntel H470 Express Chipset
    BIOS1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 22.6cm x 18.5cm
    AudioRealtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Expansion Slots
    PCICPU:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    Chipset:
    1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Memory
    TypeDDR4
    Slots2 x DIMM
    Supported Memory11th Generation Intel Core i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
    10th Generation Intel Core i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MT/s memory modules
    10th Generation Intel Core i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MT/s memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory64 GB (32 GB single DIMM capacity)
    Graphics
    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    * The D-Sub port is only available with the 10th Generation processors.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    Connector & Ports
    HDMI1 x HDMI
    D-Sub (s)1 x D-Sub
    USB (s)Chipset:
    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    LAN Port (s)Realtek GbE LAN chip (1 Gbps/100 Mbps)
    Supported StorageChipset:
    1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
    4 x SATA 6Gb/s connectors
    Intel Optane Memory Ready
    RAIDSupport for RAID 0, RAID 1, RAID 5, and RAID 10
    Audio3 x audio jacks
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x serial port header
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special FeaturesSupport for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install
    Bundled SoftwareNorton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty03 Years

    Description

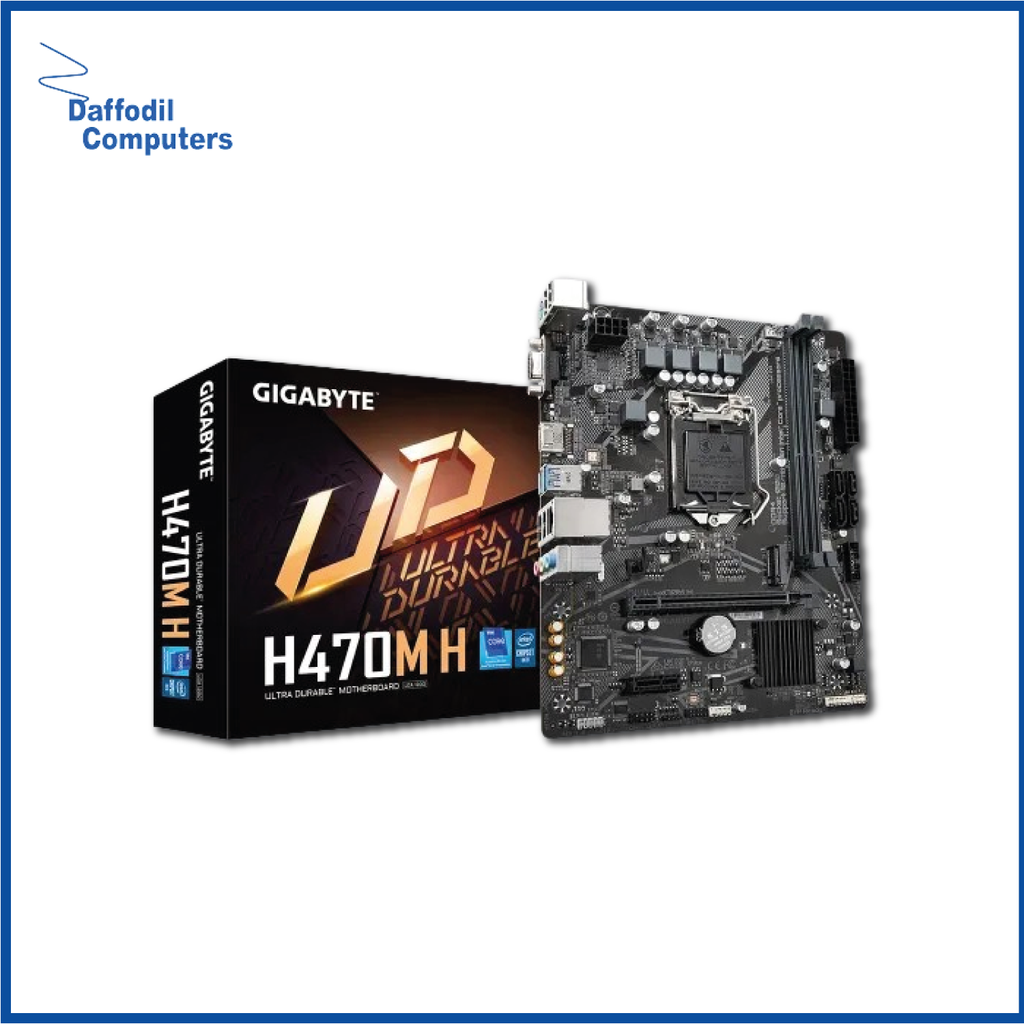

    GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard

    The GIGABYTE H470M H Micro ATX Motherboard has Intel Ultra Durable with GbE LAN, Anti-Sulfur Resistor, and Smart Fan 5. It supports 11th/10th Generation Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, and 2 DIMMs. 8-Channel HD Audio with High-Quality Audio Capacitors This Motherboard has NVMe PCIe Gen3 x4 2280 M.2 Connector and GbE LAN with Bandwidth Management. Smart Fan 5 has Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP. GIGABYTE APP Center, Anti-Sulfur Resistor Design, Simple and Easy to Use GbE LAN includes a network bandwidth management program that helps to lower network latency and maintain low ping times to provide improved responsiveness in busy LAN scenarios.
