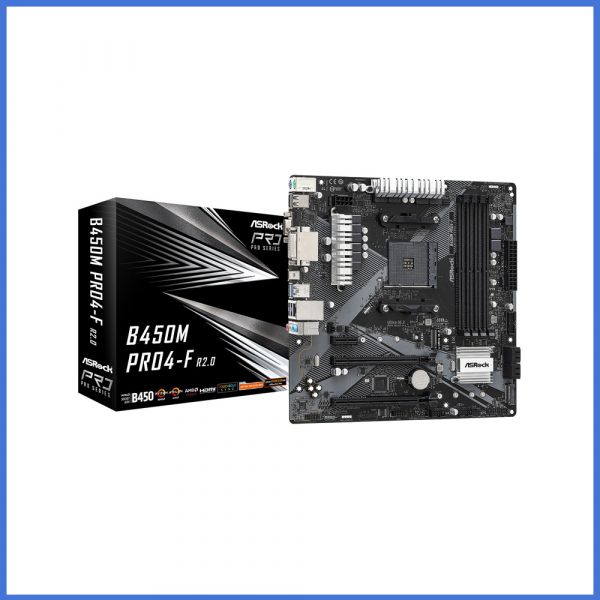

Asrock B450M Pro4-F AMD Motherboard

http://daffodil-bd.com/web/image/product.template/5522/image_1920?unique=a58e0fa
(0 review)

Key Features
Model: Asrock B450M Pro4-F
AMD AM4 Socket
Supports DDR4 3200+ (OC)
Maximum Memory 64GB
AMD Quad CrossFireX

10,700.00 ৳ 10700.0 BDT 10,700.00 ৳ VAT Excluded

10,700.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    MOT014
    Category :
    Motherboard
    Share :
    Basic Information
    Supported CPU- AMD AM4 Socket
    - Digi Power design
    - 9 Power Phase design
    ChipsetAMD Promontory B450
    BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - Supports "Plug and Play"
    - ACPI 5.1 compliance wake up events
    - Supports jumperfree
    - SMBIOS 2.3 support
    - DRAM Voltage multi-adjustment
    Form Factor- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    - Solid Capacitor design
    Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - ELNA Audio Caps
    Expansion Slots
    PCIAMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
    - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
    - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
    AMD Ryzen series CPUs (Raven Ridge)
    - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)
    - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
    AMD Athlon series CPUs
    - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)
    - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)

    - 1 x PCI Express 2.0 x1 Slot
    - Supports AMD Quad CrossFireX and CrossFireX
    M.2 Socket- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)
    - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s
    Memory
    TypeDual Channel DDR4 Memory Technology
    Slots4 x DDR4 DIMM Slots
    Supported Memory- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory
    - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory
    - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
    Maximum Memory64GB
    Graphics
    Graphics- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
    - DirectX 12, Pixel Shader 5.0
    - Shared memory default 2GB. Max Shared memory supports up to 16GB.
    - Three graphics output options: D-Sub, DVI-D and HDMI
    - Supports Triple Monitor
    - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    - Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports
    - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports
    Max Shared Memory16 GB
    Connector & Ports
    HDMI1 x HDMI Port
    Display Port (s)1 x DVI-D Port
    D-Sub (s)1 x D-Sub Port
    DVI-D (s)1 x DVI-D Port
    USB (s)- 2 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
    - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
    LAN Port (s)- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111GR
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports LAN Cable Detection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
    Supported Storage- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)
    - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
    Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - ELNA Audio Caps
    Internal I/O Ports- 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
    - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
    - 1 x COM Port Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 1 x Addressable LED Header**
    - 1 x AMD Fan LED Header***
    - 1 x CPU Fan Connector (4-pin)****
    - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)*****
    - 1 x Chassis Fan Connector (3-pin)
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x AMD LED Fan USB Header
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

    TPM (Trusted Platform Module )1 x TPM Header
    Others
    Special FeaturesASRock Super Alloy
    - Premium 42A Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    - 2oz Copper PCB
    ASRock Ultra M.2 (PCIe Gen3 x4)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
    Bundled SoftwareSoftware
    - ASRock A-Tuning
    - ASRock RGB LED
    - ASRock XFast LAN
    UEFI
    - ASRock Full HD UEFI
    - ASRock Instant Flash
    - ASRock Easy RAID Installer
    Warranty Information
    Manufacturing Warranty03 years

    Description

    AMD StoreMI Technology

    A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology combines these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.

    Dual M.2 For SSD

    Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSD.

    What is the price of Asrock B450M Pro4-F AMD Motherboard in Bangladesh?

    Find Asrock B450M Pro4-F AMD Motherboard Best Price in Bangladesh is 10,700৳. Find also other Motherboard on reasonable from our website. You will get home delivery in Dhaka city or pickup from our showroom.
