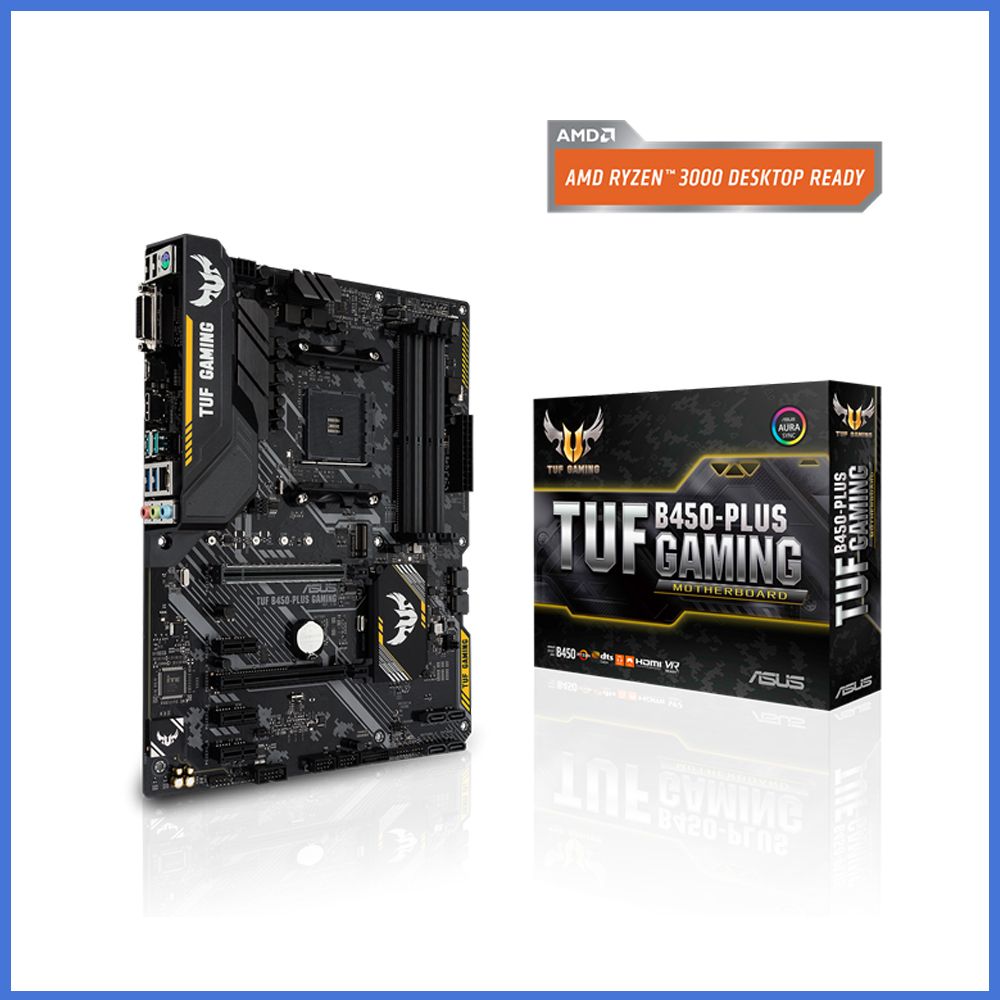

Asus TUF B450-PLUS GAMING AMD ATX Motherboard

http://www.daffodil-bd.com/web/image/product.template/5266/image_1920?unique=56da16e
(0 review)

Key Features
Brand: Asus
Model: TUF B450-PLUS GAMING
CPU: AMD Ryzen
Chipset: AMD B450
Memory: 4 x DDR4, Max 64 GB
7 x PCI Express slots



11,600.00 ৳ 11600.0 BDT 11,600.00 ৳ VAT Excluded

11,600.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPUAMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
    Supports CPU up to 8 cores
    ChipsetAMD B450
    BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
    Form FactorATX Form Factor
    12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
    Expansion Slots
    PCIAMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    AMD Ryzen™ with Radeon™ Vega Graphics Processor
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD Athlon™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0/2.0 x16 (x4 mode)
    AMD B450 chipset
    1 x PCIe 2.0 x16 (max at x4 mode)
    3 x PCIe 2.0 x1
    M.2 Socket1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
    Memory
    TypeDual Channel DDR4 Memory Technology
    Slots4 x DIMM
    Supported MemoryDDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
    Maximum Memory64 GB
    Graphics
    GraphicsMulti-VGA output support : HDMI/DVI-D ports
    - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    Connector & Ports
    HDMI1 x HDMI port
    DVI-D (s)1 xDVI-D
    USB (s)AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)
    AMD B450 chipset :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
    AMD B450 chipset :
    2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    AMD B450 chipset :
    6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
    LAN Port (s)Realtek® RTL8111H
    TUF LANGuard
    Supported StorageAMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
    AMD Athlon™ with Radeon™ Vega Graphics Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1
    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
    2 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10
    AMD B450 chipset :
    4 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10
    AudioRealtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2
    Audio Feature :
    - Exclusive DTS Custom for GAMING Headsets.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
    Internal I/O Ports1 x Aura RGB Strip Header
    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x AIO_PUMP connector (1 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    1 x COM port header
    Warranty Information
    Manufacturing Warranty03 years

    Description

    Asus TUF B450-PLUS GAMING ATX AM4 socket Ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory AMD motherboard has the Ultra-Fast 32Gbps M.2, HDMI 2.0b, Type C and native USB 3.1 Gen 2 Interface. Considering the graphics, it will support a maximum resolution of 4096 x 2160 @ 60 Hz for HDMI and 1920 x 1200 @ 60 Hz for DVI-D ports for Multiple Displays. This Aura Sync RGB motherboard has the facility of SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliable TUF Protection. This AMD CrossFireX„ Technology board has GPU Temperature Sensing & Fan Xpert 4 Core and Military-grade TUF Components such as TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability.
    Purchase a TUF B450-PLUS GAMING board with 3 years of warranty facility at the best price from Star Tech. Order the latest AMD board from Star Tech’s online store and have the delivery to any location in Bangladesh.
