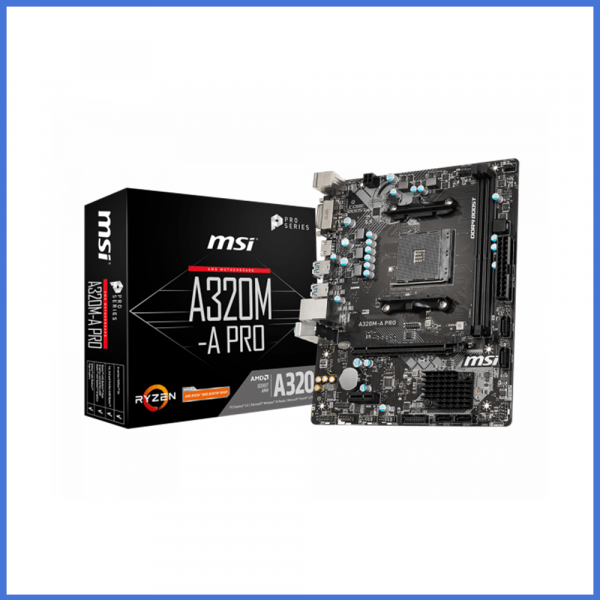

MSI A320M-A Pro Max AMD Motherboard

http://www.daffodil-bd.com/web/image/product.template/5250/image_1920?unique=c367364
(0 review)

Key Features
Model: MSI A320M-A Pro Max
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ with Radeon Vega Graphics
Audio: studio grade sound quality
Core Boost: support more cores
Turbo M.2: Running at PCI-E Gen3 x4

5,970.00 ৳ 5970.0 BDT 5,970.00 ৳ VAT Excluded

5,970.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPUSupports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
    ChipsetAMD A320 Chipset
    Form Factorm-ATX Form Factor
    9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
    Expansion Slots
    PCI1 x PCIe 3.0 x16 slot
    Supports x16 speed
    1st, 2nd and 3rd Gen AMD Ryzen
    Supports x8 speed
    Ryzen with Radeon Vega Graphics
    2nd Gen AMD Ryzen with Radeon Graphics
    A-series
    Athlon X4
    Supports x4 speed
    AMD Athlon with Radeon Vega Graphics
    PCIe 2.0 x1 slot
    M.2 Socket1x M.2 slot (Key M)
    Supports PCIe 3.0 x4 and SATA 6Gb/s
    1st, 2nd and 3rd Gen AMD Ryzen
    Ryzen with Radeon Vega Graphics
    2nd Gen AMD Ryzen with Radeon Graphics
    Memory
    TypeDual channel memory architecture
    Supports ECC UDIMM memory (non-ECC mode)
    Support non-ECC UDIMM memory
    Slots2
    Supported MemorySupport DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC)
    Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)
    Maximum Memory32GB
    Graphics
    Graphics1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2
    1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2
    Only support when using the processor with
    Max Shared MemoryGraphicssMaximum shared memory of 2048 MB
    Connector & Ports
    HDMI1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
    DVI-D (s)Yes1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
    USB (s)AMD A320 Chipset
    6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
    6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
    LAN Port (s)1 x Realtek 8111H Gigabit LAN controller
    Supported StorageAMD A320 Chipset
    4 x SATA 6Gb/s ports
    Supports RAID 0, RAID1 and RAID 10
    1x M.2 slot (Key M)
    Supports PCIe 3.0 x4 and SATA 6Gb/s
    1st, 2nd and 3rd Gen AMD Ryzen™
    Ryzen with Radeon Vega Graphics
    2nd Gen AMD Ryzen with Radeon Graphics
    Supports PCIe 3.0 x2 and SATA 6Gb/s
    AMD Athlon with Radeon™ Vega Graphics
    A-series
    Athlon X4
    Supports 2242/ 2260/ 2280/ 22110 storage devices
    Audio7.1-Channel High Definition Audio
    Internal I/O Ports1x 24-pin ATX main power connector
    1x 4-pin ATX 12V power connector
    4x SATA 6Gb/s connectors
    2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
    1x 4-pin CPU fan connector
    1x 4-pin system fan connector
    1x Front panel audio connector
    2x Front panel connectors
    1x Chassis Intrusion connector
    1x Serial port connector
    1x Clear CMOS jumper
    TPM (Trusted Platform Module )1x TPM module connector
    Warranty Information
    Manufacturing Warranty03 Years Warranty

    Description

    MSI A320M-A Pro Max AMD Motherboard

    The MSI A320M-A Pro Max AMD Motherboard MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want. Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want. Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility, so you confirm and choose any gaming rig as you want. With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance. MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience. Reward your ears with studio grade sound quality. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, studio quality sound to create the most immersive sound experience. Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.
