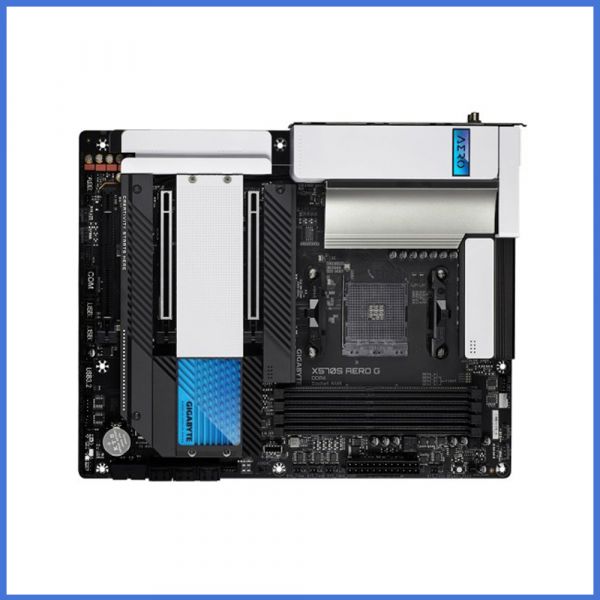

Gigabyte X570S AERO G AMD ATX Motherboard

Price:

36,780.00 ৳
  2. Shop
  3. Gigabyte X570S AERO G AMD ATX Motherboard
Asus ZenBook 14 UX435EAL Core i7 11th Gen 1 TB SSD 14" FHD Laptop
Asus ZenBook 14 UX435EAL Core i7 11th Gen 1 TB SSD 14" FHD Laptop
141,050.00 ৳
141,050.00 ৳
HP 250 G8 Core i5 11th Gen, 8GB RAM, 256GB SSD, 1TB HDD, 15.6" FHD Laptop
HP 250 G8 Core i5 11th Gen, 8GB RAM, 256GB SSD, 1TB HDD, 15.6" FHD Laptop
58,600.00 ৳
58,600.00 ৳

Gigabyte X570S AERO G AMD ATX Motherboard

http://www.daffodil-bd.com/web/image/product.template/6451/image_1920?unique=b101113
(0 review)

Key Features
Model: X570S AERO G
Support Ryzen 5000, 4000 G, 3000, 3000 G, 2000, 2000 G series processors
Dual-Channel DDR4 memory, 4 DIMMs
VisionLINK I/O design & Wi-Fi 6 2x2 802.11ax
4 Ultra-Fast NVMe PCIe x4 M.2 connectors

36,780.00 ৳ 36780.0 BDT 36,780.00 ৳ VAT Excluded

36,780.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us
    SKU :
    MOT147
    Category :
    Motherboard
    Tags :
    Share :
    Terms and Conditions

    Specification

    Basic Information
    Supported CPUAMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors
    ChipsetAMD X570
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorATX Form Factor; 30.5cm x 24.4cm
    AudioRealtek ALC1220-VB Audio CODEC
    * The back panel line out jack supports DSD audio.
    Support for DTS:X Ultra
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
    Expansion Slots
    PCI1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support PCIe 4.0 x16 mode
    AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series Processors support PCIe 3.0 x16 mode
    AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors support PCIe 3.0 x8 mode

    1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
    AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support PCIe 4.0 x8 mode
    AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series Processors support PCIe 3.0 x8 mode
    AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors do not support this slot
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
    Supporting PCIe 4.0* /3.0 x4 mode
    * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
    * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
    M.2 Socket1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs:
    Memory
    TypeDual channel memory architecture
    Slots4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Supported MemoryAMD Ryzen 5000 Series processors:
    Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

    AMD Ryzen 4000 G-Series processors:
    Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

    AMD Ryzen 3000 Series processors:
    Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

    AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors:
    Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory128 GB
    Graphics
    GraphicsIntegrated Graphics Processor:
    1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
    * Support for drawing tablets and 20V@3A of power delivery.
    * Support for DisplayPort 1.4 version and HDCP 2.3
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
    * For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only.
    Max Shared Memory16 GB
    Connector & Ports
    HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    USB (s)CPU:
    1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    2 x USB 3.2 Gen 1 ports on the back panel
    Chipset+ASMedia USB 3.2 Gen 2x2 Controller:
    1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support

    Chipset:
    1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    4 x USB 3.2 Gen 1 ports available through the internal USB headers

    Chipset+2 USB 2.0 Hubs:
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication moduleIntel Wi-Fi 6 AX200
    WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
    BLUETOOTH 5.1
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Supported Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
    AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    Supporting PCIe 4.0* /3.0 x4/x2 SSDs
    * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
    * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
    1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs:
    Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
    * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
    6 x SATA 6Gb/s connectors, integrated in the Chipset:
    Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    AudioInternal: 1 x front panel audio header
    Back Panel: 5 x audio jacks
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x CPU cooler LED strip/RGB LED strip header
    4 x M.2 Socket 3 connectors
    6 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C header, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x Thunderbolt add-in card connector
    1 x serial port header
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    1 x Q-Flash Plus button
    TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    Others
    Special FeaturesSupport for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Bundled SoftwareNorton Internet Security (OEM version)
    cFosSpeed
    Warranty Information
    Manufacturing Warranty03 years

    Description

    GIGABYTE X570S AERO G AMD ATX Motherboard

    The GIGABYTE X570S AERO G AMD ATX Motherboard supports Ryzen 5000, 4000 G, 3000, 3000 G, 2000, and 2000 G series processors. It is based on AMD X570 Chipset. It has 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory. It supports ECC Unbuffered DIMM 1Rx8/2Rx8 memory modules and non-ECC Unbuffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. It delivers reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production. GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C cable will simplify the user experience more than ever. GIGABYTE VisionLINK lets you not only without cable clutter, but also the benefit of data, video, and power charging at the same time. VisionLINK equips you with the unique capability of data delivery, the DisplayPort Alternate Mode for video signal, and the 60W Power Delivery design for your device charging. Its a perfectly tailored connectivity for creators and professional artists. It features High-bandwidth and low-latency network support by Intel 2.5GbE LAN and Wi-Fi 6 2x2 802.11ax with all-new antenna support for better signal. It has 4 Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards. It features an effective cooling solution design for better thermal dissipation and Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration. Q-Flash Plus Updates BIOS without Installing the CPU, Memory, and Graphics Card. The GIGABYTE X570S AERO G comes with a 3-year warranty.
