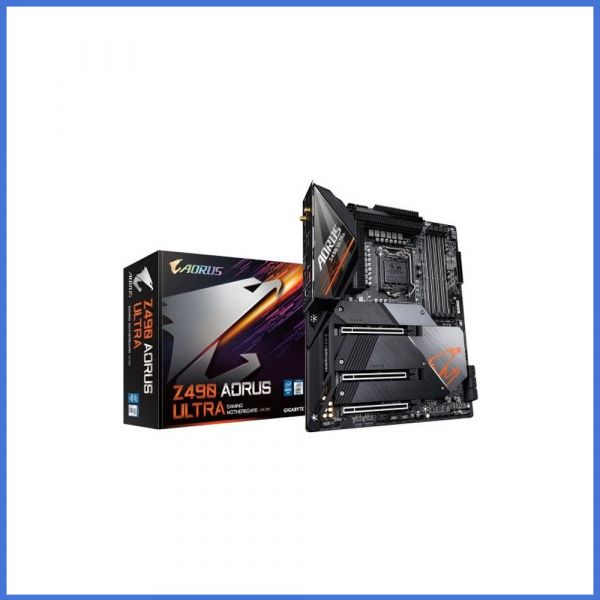

Gigabyte Z490 Aorus Ultra 10th Gen ATX Motherboard

https://www.daffodil-bd.com/web/image/product.template/5510/image_1920?unique=f4b316c
(0 review)

Key Features
Model: Z490 Aorus Ultra
Intel Socket LGA1200 for 10th Gen Processors
Chipset: Intel Z490
CrossFire, SLI Supported
4 x DIMM, Max. 128GB DDR4

29,840.00 ৳ 29840.0 BDT 29,840.00 ৳ VAT Excluded

29,840.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us
    SKU :
    MOT008
    Category :
    Motherboard
    Tags :
    Share :
    Terms and Conditions

    Specification

    Basic Information
    Supported CPUSupport for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
    L3 cache varies with CPU
    ChipsetIntel Z490 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorATX Form Factor; 30.5cm x 24.4cm
    Expansion Slots
    PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
    1 x PCI Express x16 slot, running at x8 (PCIEX8)
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    Supports up to ASPM L1.2 power management protocols.
    M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
    Memory
    TypeDual channel memory architecture
    Slots4 x DDR4 DIMM
    Supported MemorySupport for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory128 GB
    Graphics
    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
    Max Shared Memory512MB
    Connector & Ports
    HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    USB (s)Chipset:
    1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
    3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

    Wireless Communication module:
    Intel Wi-Fi 6 AX201
    WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
    BLUETOOTH 5.0
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 PCIe x4/x2 SSD support) (M2P_SB)
    1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
    1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    Intel Optane Memory Ready
    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
    AudioRealtek ALC1220-VB codec
    Support for DTS:X® Ultra
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    3 x M.2 Socket 3 connectors
    6 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt™ add-in card connectors
    1 x noise detection header
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    1 x Q-Flash Plus button
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special FeaturesSupport for APP Center
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Bundled SoftwareSupport for Windows 10 64-bit
    Warranty Information
    Manufacturing Warranty03 Years

    Description

    Gigabyte Z490 Aorus Ultra 10th Gen WiFi ATX Motherboard

    Neonpunk style emanates in the darkness from the glimmer of high-quality metals, showcasing futuristic aesthetics in the darkness of the night. To fully support the latest 10th Gen ten-core CPU, the Z490 AORUS ULTRA is equipped with the ultimate power solution with the desired features: direct, digital, and multiple phases. After countless experiments and tests, GIGABYTE presents the unbeatable Z490 AORUS ULTRA for enthusiasts and gamers. GIGABYTE understands that our customers won't stop chasing better computer performance, and strive to deliver that in our products. For the Z490 series, protective and optimized memory trace enhance the performance; faster read and write speed save time and improve efficiency; and generous M.2 Storage with thermal guards ensure unthrottled performance. Future upgrades to the Z490 are made possible by the use of PCIe 4.0-ready components. Unthrottled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Heatpipe II, and Thermal Guards II. The comprehensive solution delivers excellent heat dissipation. The Z490 AORUS ULTRA stays cool on VRMs and M.2 SSD even on full loading, making it most suitable for enthusiasts, overclockers, and professional gamers. A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z490 AORUS ULTRA provides all next-generation network, storage, and WIFI connectivity to keep you up to speed. Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures users with the best audio quality at all times. ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.GIGABYTE is reputable for its product durability and high-quality manufacturing process. Needless to say, we use the best components we can find for the Z490 AORUS motherboard and reinforce every slot to make each of them solid and durable. Good software goes hand in hand with perfect hardware. Z490 AORUS ULTRA bundled several useful and intuitive software to help users to control every aspect of motherboard.
