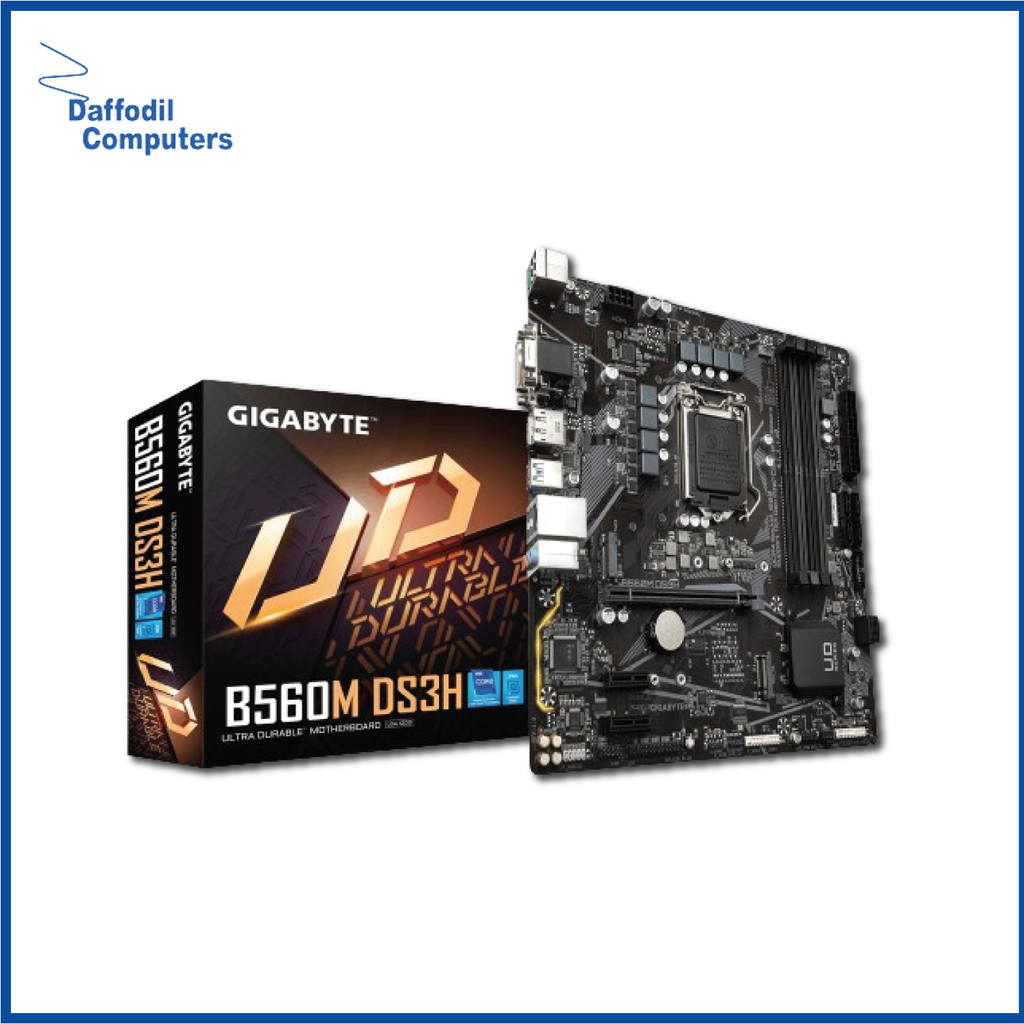

Gigabyte Motherboard B560m Ds3h

http://www.daffodil-bd.com/web/image/product.template/13966/image_1920?unique=4d9dc85
(0 review)

Key Features
Model: B560M DS3H
Supports 11th and 10th Gen Intel Core Processors
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
Dual-Channel DDR4, 4 DIMMs
GIGABYTE Exclusive 8118 Gaming LAN

11,342.00 ৳ 11342.0 BDT 11,342.00 ৳ VAT Excluded

11,342.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    MOT00836
    Category :
    Motherboard
    Share :

    Specification

    Basic Information
    Supported CPU11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
    10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
    ChipsetIntel B560 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
    AudioRealtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Expansion Slots
    PCI1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)
    2 x PCI Express x1 slots
    (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
    M.2 Socket1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
    Memory
    TypeDual-channel memory architecture
    Slots4 x DDR4 DIMM
    Supported Memory11th Generation Intel Core i9/i7/i5 processors:
    Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
    10th Generation Intel Core i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
    10th Generation Intel Core i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory128 GB (32 GB single DIMM capacity)
    Graphics
    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
    * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    Support for up to 3 displays at the same time
    Connector & Ports
    HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    Display Port (s)1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    D-Sub (s)1 x D-Sub port
    DVI-D (s)1 x DVI-D port
    USB (s)Chipset:
    1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    4 x USB 2.0/1.1 ports available through the internal USB headers
    Chipset+USB 2.0 Hub:
    2 x USB 2.0/1.1 ports on the back panel
    LAN Port (s)Realtek GbE LAN chip (1000/100 Mbit)
    Supported Storage1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
    6 x SATA 6Gb/s connectors
    Intel Optane Memory Ready
    Audio3 x audio jacks
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    6 x SATA 6Gb/s connectors
    2 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x serial port header
    1 x parallel port header
    1 x Clear CMOS jumper
    1 x Q-Flash Plus button
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special FeaturesSupport for APP Center
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Bundled SoftwareNorton Internet Security (OEM version)
    Realtek 8118 Gaming LAN Bandwidth Control Utility
    Warranty Information
    Manufacturing Warranty3 years

    Description

    GIGABYTE B560M DS3H Intel 10th and 11th Gen Micro ATX Motherboard

    GIGABYTE B560M DS3H Micro ATX Motherboard supports 11th and 10th Gen Intel Core Series Processors and Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs with Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs. It features Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 and GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. It has USB 3.2 Gen1 Type-C for Fast and Versatile Connections and High-Quality Audio Capacitors and an Audio Noise Guard with LED Trace Path Lighting. It supports RGB FUSION 2.0 Addressable LED & RGB LED Strips and Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. The Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. It has 3 years warranty.
